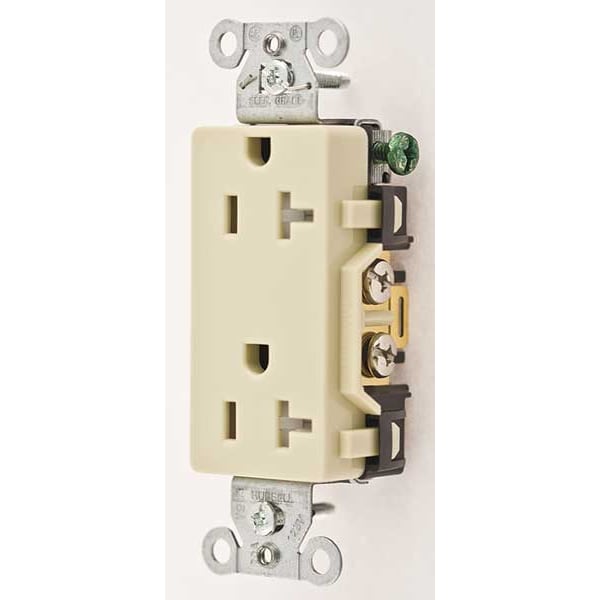

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # DR20ITR

  • Zoro # G3285344


product price: $11.19
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DR20ITR
Zoro #
G3285344
UPC #
783585144436
Country of Origin
China

Dimensions

Overall Depth
1.3 in
Face Plate Height
2.7 in
Mount Hole Center-to-Center Width
1.3 in
Mount Hole Center-to-Center Height
2.7 in
Maximum Wire Size
10 AWG
Face Plate Width
1.3 in
Minimum Wire Size
12 AWG

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
Standards
CSA Certified C22.2, NEMA WD-6, UL 498
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Outlet Type
Decorator
Corrosion Resistant
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Weather Resistant - Plugs and Receptacles
No
Mounting Type - Plugs and Receptacles
Flush
Application Environment
Commercial
Material
Nylon
Sub-Category
Duplex Receptacles
Outlet Type - Plugs and Receptacles
Decorator Duplex
Surge Suppression
No
Voltage
125VAC
Tamper Resistant
Yes
Weather Resistant
No
NEMA Configuration
5-20
Number of Gangs
1
Wiring Method - Plugs and Receptacles
Back and Side
HP
1 hp
Power Indicator
No
Mounting Type
Flush
Type
Duplex
Contact Material
Brass
GFCI
No
Connection Orientation
Straight
Shrouded
No
AFCI
No
Includes Mounting Hardware
Yes
UL 94 Flammability Rating
V-2
NEMA Enclosure Rating
1
Minimum Operating Temperature
-40 Degrees F
Horsepower Rating
1 hp
For Location
Indoor
Surge Protection
No
Maximum Operating Temperature
167 Degrees F
Cover Type
No Cover
Market
Commercial, Industrial
Housing Material
Nylon
Polarized
Yes
Grade
Federal Specification
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Device Color
Ivory
Power Contacts Material
.030" (.8) Brass
Dielectric Voltage
Withstands 2,000V minimum
Standard
NEMA
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Terminal Accommodation
#12-#10 AWG copper stranded or solid conductor only
Top Material
Nylon
Flammability
UL 94 V-2
Ground Screw Material
#8-32 Brass, Multiple Drive
Terminal Screw Material
#8-32 Brass, Multiple Drive
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Mounting Strap Material
.040" (1) Steel (Galvanized)
Horsepower
1
Face Style
Smooth Face
Receptacle Grade
StyleLine Decorator Series, Specification Grade, Tamper Resistant
Rating
20A, 125V
Current Interrupting
Certified for current interrupting at full rated current
Face Shape
Decorator
Certification
UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42
Base Material
Nylon
Mounting Screw Material
Steel-Zinc Plated
Poles and Wires
2 Pole, 3-Wire Grounding
Auto Ground Clip Material
Stainless Steel

Description

The HUBBELL 5-20R Decorator Duplex Receptacle is a flush mount electrical outlet rated for 20A and 125V AC. Suitable for use in commercial and industrial environments, this receptacle includes a tamper-resistant shutter mechanism compliant with national electrical code requirements. Its smooth Style Line® decorator face features an aesthetic appearance suitable for modern installations.


Key Features of the HUBBELL 5-20R Decorator Duplex Receptacle:

  • Amperage/Voltage: Rated for 20A, 125V AC operation

  • NEMA Configuration: 5-20R duplex outlet with straight blade design

  • Tamper Resistant: Built-in shutters designed to limit insertion of foreign objects

  • Mounting Type: Flush mount installation with included mounting hardware

  • Wiring Method: Supports both back and side wiring using screw terminals; accommodates #12–#10 AWG copper conductors

  • Material Construction: Nylon housing and faceplate with brass power contacts and ground screw

  • Certification & Standards: UL Listed (File E2186), CSA Certified C22.2 No.42, NEMA WD-6 compliant, listed to UL Standard 498

  • Operating Temperature Range: -40°F to 167°F (-40°C to +75°C)
