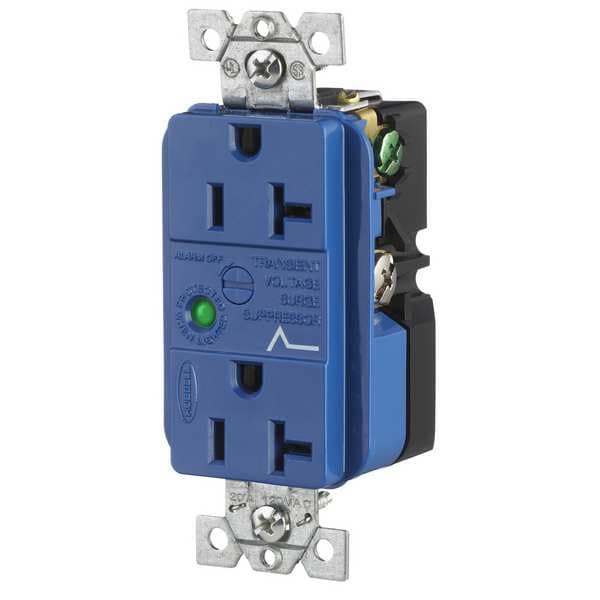

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

The HUBBELL 20A Duplex Decorator Receptacle 125VAC 5-20R BL is a commercial-grade duplex receptacle suitable for use in indoor electrical installations where surge suppression is required. It features integrated surge suppression technology with two 22mm square metal oxide varistors (MOVs) incorporating components rated to suppress transient voltage events, and includes both visual and audible indicators to indicate status of the surge suppression function. The device is rated for 20 amps at 125 volts AC, supports back wiring via screw terminals, and has a grounded design suitable for standard decorator-style applications.

Key Features of the HUBBELL - 20A Duplex Decorator Surge Protection Receptacle:

• Surge Protection: Integrated MOV-based suppression rated to ANSI/IEEE C62.41 standards.


• Indicators: LED power-on indicator and audible alarm indicate status of the surge suppression function.


• Grounding: Includes self-grounding staple and green steel grounding screw for secure installation.


• NEMA Configuration: Standard NEMA 5-20R duplex outlet configuration; straight blade type with polarized contacts.


• Material Construction: Nylon device base/top with composite housing; brass contact materials enhance conductivity.


• Mounting Type: Flush mount design with included mounting hardware; single-gang application compatible.


• Circuit Rating: Rated for up to 20 A at 125 V AC, single phase, supporting loads up to 1 horsepower (hp).


• Certifications & Standards: UL Listed (File E2186), CSA Certified C22.2 No.42, meets UL498 and UL1449 TVSS requirements.
