  11. Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

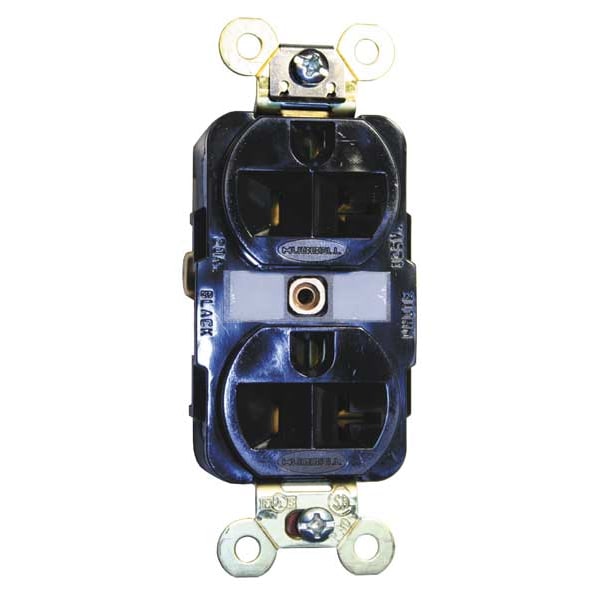

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5362BK - main

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5362BK

  • Zoro # G1579952

product price: $31.52
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5362BK
Zoro #
G1579952
UPC #
783585435244
Country of Origin
United States

Dimensions

Display Size
Standard Sized Product
Height
1.19 in
Width
1.65 in
Wire Size
#14 AWG to #10 AWG
Dimensions
3.28 in x 1.65 in x 1.19 in
Length
3.28 in
Overall Depth
1.2 in
Face Plate Height
2.7 in
Face Plate Width
1.7 in
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Standards
CSA C22.2 No. 42, NEMA WD-6, UL 498, UL Federal Specification WC-596
Resistance Properties
Corrosion Resistant
Flange Type
Non-Flanged
Weather Resistant
No
Voltage
125VAC
Corrosion Resistant
No
Outlet Type
Duplex
Weather Resistant - Plugs and Receptacles
No
Outlet Type - Plugs and Receptacles
Standard Duplex
Mounting Type
Flush
Power Indicator
No
Sub-Category
Duplex Receptacles
Color
Black
Tamper Resistant
No
Surge Suppression
No
Mounting Type - Plugs and Receptacles
Flush
Material
Nylon/Reinforced PET
NEMA Configuration
5-20
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
HP
1 hp
Number of Gangs
1
Application Environment
Harsh and Heavy Use Industrial
Wiring Method - Plugs and Receptacles
Back and Side
Brand
Hubbell Wiring Device-Kellems
Number Of Wires
3-Wire
Mounting Hardware Material
Screw Mounting
UPC
783585000000
Environmental Rating
Indoor Dry Unless Protected By Additional Means
Series
Extra Heavy Duty
Weight
0.25 lb
Connectivity
Back and Side Wired Screw Terminals
Application
Extra Heavy Duty Specification Grade
Maximum Horsepower
1
Amperage
20 A
Carton Quantity
10
Nema Rating
5-20R
Wattage
2500 W
Style
Finder Groove Face
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Dielectric Strength
Withstands 2,000V minimum
Type
Standard Duplex
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Connection Orientation
Straight
Surge Protection
No
Polarized
Yes
Market
Industrial
Cover Type
No Cover
Housing Material
Nylon (Face)
Minimum Operating Temperature
-40 Degrees F
Contact Material
Nickel-Plated Brass
For Location
Indoor
Maximum Operating Temperature
167 Degrees F
Shrouded
No
NEMA Enclosure Rating
1
UL 94 Flammability Rating
V-0, V-2
Grade
Federal Specification
AFCI
No
Horsepower Rating
1 hp
GFCI
No
Includes Mounting Hardware
Yes
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Receptacle Grade
Extra Heavy Duty Spec Grade
Terminal Screw Material
#10-32 Silicon Bronze (Ni plate if neutral)
Auto Ground Clip Material
Stainless Steel
Power Contacts Material
.037" (.9) Brass
Face Shape
Traditional
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Mounting Screw Material
Steel-Zinc Plated
Receptacle Style
Duplex
Certification
-UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Flammability
Top: UL 94V-2, Base: UL 94V-0, UL 94 V2 or better
Current Interrupting
Certified for current interrupting at full rated current
Top Material
Nylon
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Base Material
Reinforced PET
Device Color
Black
Other Available Colors
Brown, Black, Gray, Ivory, Red, White
Mounting Strap Material
.050" (1.3) Brass
Horsepower
1
Rating
20A, 125V
Dielectric Voltage
Withstands 2,000V minimum
Standard
NEMA
Ground Screw Material
#10-32 Silicon Bronze (Green)
Poles and Wires
2 Pole, 3-Wire Grounding
Face Style
Finder Groove

Description

The HUBBELL 20A Duplex Receptacle 125VAC 5-20R BK is a traditional duplex straight blade receptacle suitable for use in industrial environments. It features a standard flush mount, accommodates #14 to #10 AWG copper conductors, and supports both back and side wiring methods. This receptacle is rated for 20 amps at 125 volts AC and conforms to NEMA 5-20R configuration standards.


Key Features of the HUBBELL - 20A Duplex Receptacle:

  • Amperage/Voltage: Rated for 20A, 125V AC operation

  • NEMA Configuration: Standard NEMA 5-20R duplex outlet

  • Wiring Method: Back and side wired screw terminals support stranded or solid copper wire (#14–#10 AWG)

  • Material Construction: Nylon face with reinforced PET base; nickel-plated brass contacts

  • Mounting Type: Flush mount with included mounting hardware

  • Grounding: Integral one-piece brass ground strap; includes grounding clip

  • Face Style: Finder Groove face style

  • Operating Temperature Range: -40°C to +75°C (without impact)

  • Circuit Identification Face: Deep body design allows circuit labeling on faceplate

  • Certain Standards Met: UL Listed, CSA Certified, Federal Specification W-C-596, NEMA WD-6 compliant
