Shop HUBBELL WIRING DEVICE-KELLEMS

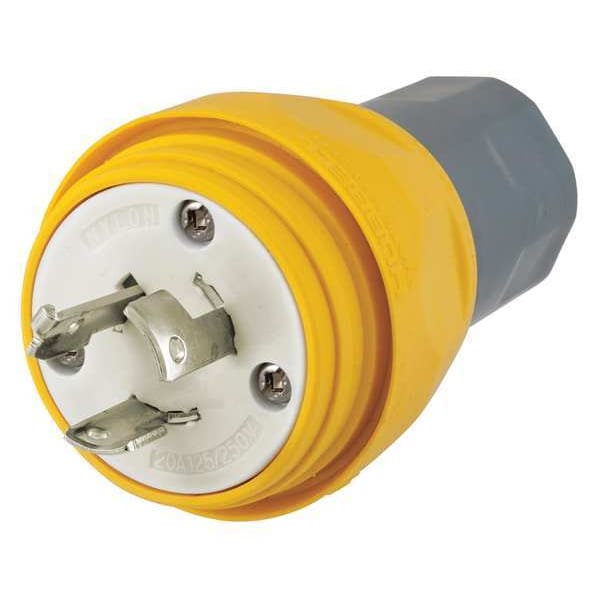

Watertight Locking Plug, Non-NEMA, 20 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals, Yellow

  • Mfr # HBL26W08

  • Zoro # G0069800

product price:  $43.00
/ea

Key Features

Current Rating
20 A
Phase
Single
Number of Poles
3
Number of Wires
3
Number of Blades
3
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
HBL26W08
Zoro #
G0069800
UPC #
783585456294
Country of Origin
Multiple

Dimensions

Cord Size
0.325 in to 0.875 in
For Minimum Cable Diameter
0.375 in
For Maximum Cable Diameter
0.875 in
Body Length
2.51 in
Outside Diameter
2.77 in
Wire Size
Min. Cord: 16/3 SJ, 18/3 S, 18/4 SJ, 18/4 S, 18/5 S;Max. Cord: 10/3 S, 10/4 S, 10/5 S
Length
2.51 in
Height
3.96 in
Width
2.51 in
Dimensions
2.51 in x 2.51 in x 3.96 in
Maximum Wire Size
10 AWG
Minimum Wire Size
18 AWG
Overall Length
2.51 in

Details

Item
Watertight Locking Plug
NEMA Plug Configuration
Non-NEMA
Current Rating
20 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Non-Grounded
Housing Color
Yellow
Standards
ANSI, NEMA WD-1 and WD-6
Resistance Properties
Chemical Resistant, Impact Resistant, UV Resistant, Watertight
Special Features
Moisture, Dust and Weather Resistant
Grade
Industrial
IP Rating
IP69K
Material
Thermoplastic Elastomer, Valox
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
-40 Degrees C
Blade Material
Nickel-Plated Brass
Polarized
Yes
Market
Industrial
Housing Material
Thermoplastic Elastomer
Body Material
Thermoplastic Elastomer
Dielectric Strength
2500V AC
Retainer Material
Clear Polycarbonate
Bushing Material
Black Elastomer
Contact Material
Nickel Plated Brass
Amperage Rating
20 A
Performance
Electrical - Current Interrupting - Rated for current interruption per UL498 Electrical - Dielectric Voltage - 2500V AC Electrical - Max Working Voltage - As marked Electrical - Temperature Rise - 30°C max per UL498 at rated current Environmental - UV resistance - All exposed materials are UV stabilized Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous Mechanical - Cord Accommodation - 0.375"-0.875" (9.5-22.2)
Amps
20
Antimicrobial
No
NEMA Configuration
Non-NEMA

Description

Watertight Locking Plug, Connection Orientation Straight, Current Rating 20 A, Housing Color Yellow, Housing Material Thermoplastic Elastomer, NEMA Plug Configuration Non-NEMA, Number of Blades 3, Number of Poles 3, Phase Single, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, Watertight, Voltage Rating 125/250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 0.875 in, For Minimum Cable Diameter 0.375 in, Grade Industrial
