  11. Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

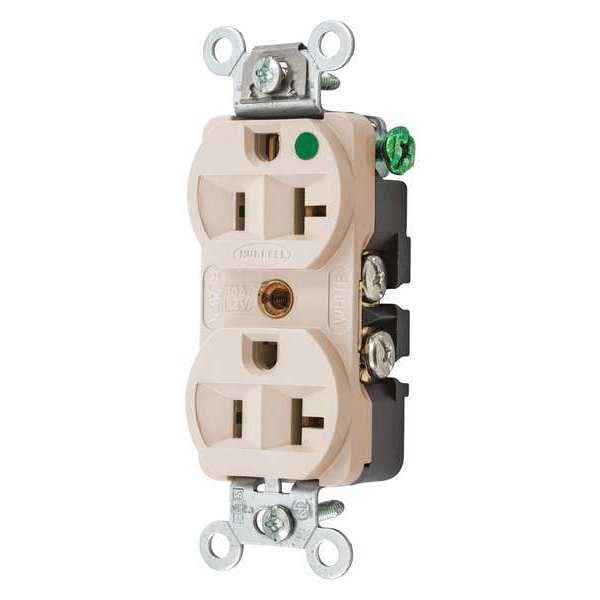

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL8300HLA - main

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL8300HLA

  • Zoro # G4440366

product price: $32.95
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL8300HLA
Zoro #
G4440366
UPC #
783585147260
Country of Origin
United States

Dimensions

Height
1.05 in
Width
1.33 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.7 in
Face Plate Width
1.3 in
Maximum Wire Size
10 AWG
Overall Depth
1.1 in
Minimum Wire Size
12 AWG
Wire Size
#12 AWG to #10 AWG
Length
3.28 in
Display Size
Slender/Compact
Dimensions
3.28 in x 1.33 in x 1.05 in

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Light Almond
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified, NEMA WD-6, UL Listed
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Tamper Resistant
No
Sub-Category
Duplex Receptacles
Surge Suppression
No
Outlet Type
Duplex
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
HP
1 hp
Mounting Type - Plugs and Receptacles
Flush
Weather Resistant - Plugs and Receptacles
No
Mounting Type
Flush
Material
Nylon
Outlet Type - Plugs and Receptacles
Standard Duplex
NEMA Rating
1
Application Environment
Heavy Use Hospital Grade
Number of Gangs
1
Weather Resistant
No
Corrosion Resistant
No
Power Indicator
No
Wiring Method - Plugs and Receptacles
Back and Side
Voltage
125VAC
Surge Protection
No
Horsepower Rating
1 hp
NEMA Enclosure Rating
1
Cover Type
No Cover
UL 94 Flammability Rating
V-0
Market
Commercial
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Housing Material
Thermoplastic
GFCI
No
Contact Material
Brass
For Location
Indoor
Connection Orientation
Straight
Shrouded
No
Polarized
Yes
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
167 Degrees F
Grade
Hospital Grade Fed. Spec.
Includes Mounting Hardware
Yes
AFCI
No
Face Style
Finder Groove
Standard
NEMA
Horsepower
1
Top Material
Impact Modified PBT
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Current Interrupting
Certified for current interrupting at full rated current
Poles and Wires
2 Pole, 3-Wire Grounding
Ground Screw Material
#10-32 Silicon Bronze (Green)
Mounting Screw Material
Stainless Steel
Rating
20A, 125V
Face Shape
Traditional
Flammability
UL 94 V-0, UL 94 V0 and UL 94-5 VA.
Power Contacts Material
.037" (.9) Brass - Ni Plated
Terminal Screw Material
#10-32 Silicon Bronze (Ni plate if neutral)
Other Available Colors
Brown, Ivory, Gray, Red, White, Light Almond
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Auto Ground Clip Material
Stainless Steel
Device Color
Light Almond
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Receptacle Style
Duplex
Terminal Accommodation
#12-#10 AWG stranded or solid copper wire only
Receptacle Grade
Compact Hospital Grade
Dielectric Voltage
Withstands 2,000V minimum
Certification
UL Listed, File E2186, Guide RTRT Fed Spec WC596G, Hospital Grade Meets NEMA WD-1 Heavy Duty and WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42 where applicable
Base Material
Reinforced PET
Mounting Strap Material
.050" (1.3) Brass-Ni Plated
OEM Brand Name
Hubbell Wiring Device-Kellems
Application
Slender/Compact Hospital Grade
Horsepower - Maximum
1
Wattage
2500 W
Style
Finder Groove Face
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Industry Standard(s)
CSA Certified, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Dielectric Strength
Withstands 2,000V minimum
Material - Mounting Hardware
Screw Mounting
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Series
Hospital Grade

Description

The HUBBELL 5-20R Hospital Grade Duplex Receptacle is a flush mount, 20A, 125V AC outlet suitable for installation in commercial and hospital-grade environments. This standard duplex receptacle features a slender, compact design with an impact-resistant finder groove face and triple wipe brass contacts for consistent electrical contact. It accommodates both back and side wiring methods using screw terminals and supports #12 to #10 AWG stranded or solid copper wire.


Key Features of the HUBBELL 5-20R Hospital Grade Duplex Receptacle:

  • Amperage/Voltage: Rated for 20A at 125V AC

  • NEMA Configuration: 5-20R, traditional duplex style

  • Mounting Type: Flush mount with included mounting hardware

  • Wiring Method: Back and side wired screw terminals; accepts #12–#10 AWG copper wire

  • Material Construction: Impact-resistant nylon housing; reinforced PET base; thermoplastic components

  • Contact Material: Brass power contacts with nickel plating for maintained specified contact pressure

  • Grounding System: Four-point grounding system with stainless steel auto ground clip and silicon bronze ground screws

  • Performance Ratings: Withstands dielectric voltage of minimum 2,000V; UL94 V-0 flammability rating; certified for current interruption at the rated current

  • Operating Temperature Range: -40°C (w/o impact) to +75°C continuous operation

  • Certifications & Standards: UL Listed (UL498), CSA Certified (C22.2 No.42), NEMA WD-6 compliant, Federal Specification W-C-596G Hospital Grade Fed. Spec.
