Shop HUBBELL WIRING DEVICE-KELLEMS

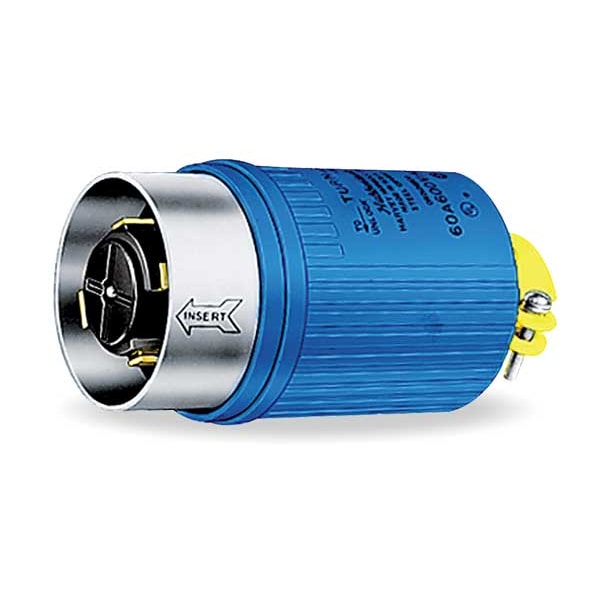

Locking Plug, Non-NEMA, 60 A, 600V AC, Three Phase, 4 Pole, Screw Terminals, Blue

  • Mfr # HBL26519

  • Zoro # G2586771

product price:  $704.70
/ea
Free Shipping & Returns

Key Features

NEMA Plug Configuration
Non-NEMA
Current Rating
60 A
Voltage Rating
600V AC
Phase
Three
Number of Poles
4
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
HBL26519
Zoro #
G2586771
UPC #
783585017334
Country of Origin
United States

Dimensions

Cord Size
0.875 in to 1.480 in
Minimum Wire Size
8 AWG
For Minimum Cable Diameter
1 in
For Maximum Cable Diameter
1.50 in
Outside Diameter
3.03 in
Maximum Wire Size
4 AWG
Body Length
3.03 in
Wire Size
#8 AWG to #4 AWG
Length
3.03 in
Dimensions
3.03 in x 3.03 in x 5.90 in
Height
5.90 in
Width
3.03 in
Overall Length
3.03 in

Details

Item
Locking Plug
NEMA Plug Configuration
Non-NEMA
Current Rating
60 A
Voltage Rating
600V AC
Phase
Three
Number of Poles
4
Number of Wires
5
Number of Blades
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
Yes
Grounding
Grounded
Housing Color
Blue
Standards
CSA Certified, UL Listed
Resistance Properties
Chemical Resistant, Impact Resistant
IP Rating
IP30
Grade
Industrial
Material
polycarbonate
Maximum Operating Temperature
75 Degrees C
Market
Industrial
Minimum Operating Temperature
-40 Degrees C
Blade Material
Brass
Polarized
Yes
Housing Material
Polybutylene Terephthalate
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Amperage Rating
60 A
Dielectric Strength
Withstands 2,000V minimum
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage Withstand - 2,000V minimum Environmental - Flammability - HB or better Environmental - Moisture Resistance - IP30 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #8 AWG - #4 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Cord Range
0.920"-1.450"(23.36-36.83)
NEMA Configuration
Non-NEMA, 5 Blade
Antimicrobial
No
Amps
60
UL 94 Flammability Rating
HB

Description

The HUBBELL 60A Locking Plug (4P 5W, 600VAC, Blue) is a locking plug rated for use in specified electrical applications. It features a polybutylene terephthalate housing and molded-in brass male contacts to provide reliable connectivity and resistance to impact. The plug accommodates cables ranging from 1.000 to 1.50 inches in diameter and supports wire sizes from #8 AWG to #4 AWG using screw terminals.


Key Features of the HUBBELL - 60A Locking Plug:

  • Amperage/Voltage Rating: Rated for up to 60 A at 600V AC

  • Poles/Wires: Four poles, five wires configuration with straight connection orientation

  • Cable & Cord Range: Accepts cable diameters between 1.000–1.50 in; cord size range of 0.875–1.480 in

  • Wire Accommodation: Supports stranded copper wire sizes #8 AWG – #4 AWG via screw terminals

  • Material Construction: Housing made from polybutylene terephthalate; interior components are thermoplastic interior components; blades constructed from brass

  • Temperature Range: Rated for operation within a temperature range of -40°C to 75°C (without impact)

  • Flammability & IP Rating: Meets UL94 HB flammability standard; rated IP30 for moisture resistance

  • Grounded, shrouded construction: Grounded, shrouded construction for added suitability in industrial use

  • Standards Compliance: Certified to CSA standards and listed under UL standards
