  11. Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

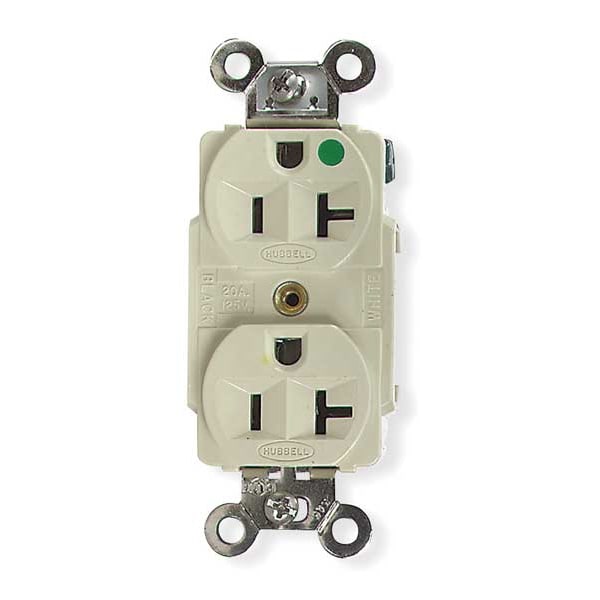

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL8300I - main

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL8300I

  • Zoro # G1726356

product price: $36.11
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL8300I
Zoro #
G1726356
UPC #
783585435725
Country of Origin
United States

Dimensions

Dimensions
3.28 in x 1.65 in x 1.19 in
Display Size
Standard Sized Product
Wire Size
#12 AWG to #10 AWG
Maximum Wire Size
10 AWG
Face Plate Height
2.7 in
Minimum Wire Size
12 AWG
Face Plate Width
1.6 in
Overall Depth
1.2 in
Mount Hole Center-to-Center Height
3.3 in
Length
3.28 in
Height
1.19 in
Width
1.65 in

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Mounting Type - Plugs and Receptacles
Flush
Color
Ivory
Application Environment
Heavy Use Hospital Grade
Outlet Type - Plugs and Receptacles
Standard Duplex
Weather Resistant
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Wiring Method - Plugs and Receptacles
Back and Side
Weather Resistant - Plugs and Receptacles
No
Mounting Type
Flush
Tamper Resistant
No
Corrosion Resistant
No
Number of Gangs
1
Outlet Type
Duplex
Sub-Category
Duplex Receptacles
Power Indicator
No
Material
Thermoplastic Polyester
Voltage
125VAC
Surge Suppression
No
HP
1 hp
NEMA Configuration
5-20
Brand
Hubbell Wiring Device-Kellems
Connectivity
Back and Side Wired Screw Terminals
Amperage
20 A
Maximum Horsepower
1
Series
Hospital Grade
Type
Receptacle
Carton Quantity
10
Style
thermoplastic polyester face
Nema Rating
5-20R
Dielectric Strength
Withstands 2,000V minimum
Number Of Wires
3-Wire
UL 94 Flammability Rating
V-0
Cover Type
No Cover
GFCI
No
NEMA Enclosure Rating
1
AFCI
No
Horsepower Rating
1 hp
Housing Material
Thermoplastic
Maximum Operating Temperature
167 Degrees F
For Location
Indoor
Polarized
Yes
Includes Mounting Hardware
Yes
Contact Material
Nickel-Plated Brass
Shrouded
No
Minimum Operating Temperature
-40 Degrees F
Surge Protection
No
Grade
Hospital Grade Fed. Spec.
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Connection Orientation
Straight
Flammability
UL 94 V-0
Terminal Accommodation
#12-#10 AWG stranded or solid copper wire only
Dielectric Voltage
Withstands 2,000V minimum
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Device Color
Ivory
Poles and Wires
2 Pole, 3 Wire
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Device Grade
Heavy Duty Spec Grade
Current Interrupting
Certified for current interrupting at full rated current
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Material - Mounting Hardware
Screw Mounting
Industry Standard(s)
CSA Certified, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Application
Extra Heavy Duty Hospital Grade
Wattage
2500 W
OEM Brand Name
Hubbell Wiring Device-Kellems
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Horsepower - Maximum
1

Description

The HUBBELL 20A Duplex Receptacle 125VAC 5-20R IV is a hospital grade, duplex receptacle rated for use in specified electrical environments. This traditional duplex outlet features a deep body design with circuit ID face and is rated for 20 amps at 125 volts AC. It incorporates nickel-plated bypass contacts as specified by manufacturer to increase contact pressure and lower operating temperature, as well as a four-point grounding system as specified by manufacturer for redundant ground continuity in high-use areas.


Key Features of the HUBBELL 20A Duplex Receptacle:

  • Amperage/Voltage: Rated for 20 A, 125 V AC

  • NEMA Configuration: 5-20R (2-pole, 3-wire grounded)

  • Wiring Method: Back and side wired screw terminals accommodate #12–#10 AWG copper wire

  • Contact Material: Nickel-plated brass contacts

  • Device Grade: Hospital grade; complies with Federal Specification W-C-596 and UL498

  • Dielectric Strength: Withstands minimum of 2,000V

  • Flammability Rating: UL94 V-0 thermoplastic polyester housing

  • Mounting Type: Flush mount with included mounting hardware

  • Circuit Identification Face & Four Point Grounding System provide clear identification and redundant grounding capability

  • Operating Temperature Range: -40°C to +75°C (without impact)
