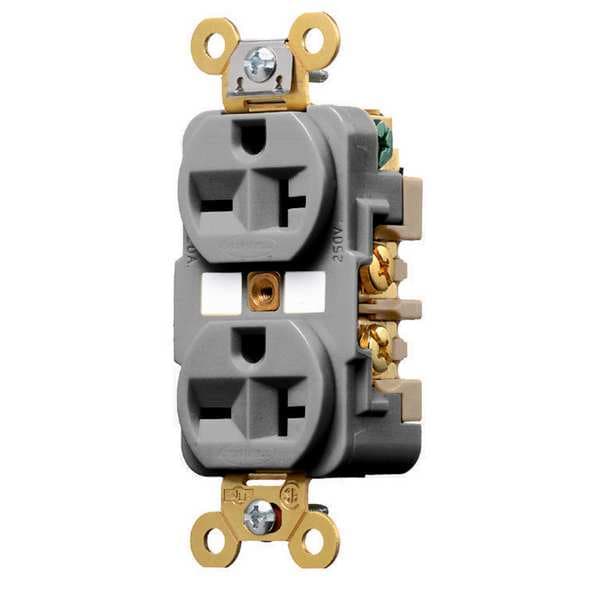

Straight Blade Receptacle, 6-20R, 20 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded
Mfr # HBL5462GY
Zoro # G2044296
product price:
$
43.15
/ea
Key Features
Receptacle Type
Duplex
NEMA Receptacle Configuration
6-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- HBL5462GY
- Zoro #
- G2044296
- UPC #
- 783585435503
- Country of Origin
- United States
- Item
- Straight Blade Receptacle
- Receptacle Type
- Duplex
- NEMA Receptacle Configuration
- 6-20R
- Current Rating
- 20 A
- Voltage Rating
- 250V AC
- Phase
- Single
- Number of Poles
- 2
- Number of Wires
- 3
- Wire Connection Type
- Screw Terminals
- Wiring Method
- Back, Side
- Grounding
- Grounded
- Housing Color
- Gray
- Mount Type
- Flush
- Standards
- CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596G, NEMA WD-6, UL Listed
- Resistance Properties
- Impact Resistant
- Flange Type
- Non-Flanged
- Material
- Nylon/Reinforced PET
- HP
- 2 hp
- Application Environment
- Harsh and Heavy Use Industrial
- NEMA Receptacle Configuration - Plugs and Receptacles
- 6-20R
- Sub-Category
- Duplex Receptacles
- NEMA Configuration
- 6-20
- Corrosion Resistant
- No
- Tamper Resistant
- No
- Outlet Type - Plugs and Receptacles
- Standard Duplex
- Number of Gangs
- 1
- Voltage
- 250VAC
- Outlet Type
- Duplex
- Power Indicator
- No
- Weather Resistant - Plugs and Receptacles
- No
- Mounting Type
- Flush
- Surge Suppression
- No
- Mounting Type - Plugs and Receptacles
- Flush
- Wiring Method - Plugs and Receptacles
- Back and Side
- Weather Resistant
- No
- Amperage
- 20 A
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Carton Quantity
- 10
- Number Of Wires
- 3-Wire
- Environmental Rating
- Indoor Dry Unless Protected By Additional Means
- Nema Rating
- 6-20R
- UPC
- 783585000000
- Series
- Extra Heavy Duty
- Connectivity
- Back and Side Wired Screw Terminals
- Wattage
- 5000 W
- Weight
- 0.25 lb
- Maximum Horsepower
- 2
- Type
- Standard Duplex
- Mounting Hardware Material
- Screw Mounting
- Brand
- Hubbell Wiring Device-Kellems
- Application
- Extra Heavy Duty
- Dielectric Strength
- Withstands 2,000V minimum
- Style
- Finder Groove Face
- UL 94 Flammability Rating
- V-0, V-2
- Cover Type
- No Cover
- Horsepower Rating
- 2 hp
- Includes Mounting Hardware
- Yes
- Connection Orientation
- Straight
- Maximum Operating Temperature
- 167 Degrees F
- Minimum Operating Temperature
- -40 Degrees F
- Surge Protection
- No
- Shrouded
- No
- Polarized
- Yes
- AFCI
- No
- Grade
- Federal Specification
- Includes
- Grounding Clip, Mounting Hardware
- For Location
- Indoor
- Market
- Industrial
- NEMA Enclosure Rating
- 1
- GFCI
- No
- Housing Material
- Nylon
- Contact Material
- Brass
- Base Material
- Reinforced PET
- Other Available Colors
- Brown, Ivory, Gray, Black
- Standard
- NEMA
- Receptacle Grade
- Heavy Duty Spec Grade
- Temperature Rise
- Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
- Current Interrupting
- Certified for current interrupting at full rated current
- Device Color
- Gray
- Terminal Accommodation
- #14-#10 AWG copper stranded or solid conductor only
- Terminal Identification
- Terminals identified in accordance with UL 498 and CSA
- Power Contacts Material
- .037" (.9) Brass
- Top Material
- Nylon
- Certification
- UL Listed to UL 498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-6 requirements, Certified to CSA, C22.2, No. 42 File 285.
- Ground Screw Material
- #8-32 Brass, Multiple Drive (Green)
- Terminal Screw Material
- #8-32 Brass /Ni plated for neutral
- Receptacle Style
- Duplex
- Dielectric Voltage
- Withstands 2,000V minimum
- Mounting Screw Material
- Stainless Steel
- Horsepower
- 2
- Rating
- 20A, 250V
- Mounting Strap Material
- .050" (1.3) Brass
- Face Shape
- Traditional
- Poles and Wires
- 2 Pole, 3-Wire Grounding
- Face Style
- Finder Groove
- Flammability
- Top: UL 94 V2. Base: UL 94 V0 and UL 94-5 VA., Top: UL 94V-2, Base: UL 94V-0
- Operating Temperatures
- Maximum continuous 75°C; minimum -40°C (w/o impact)
- Auto Ground Clip Material
- Stainless Steel
- Horsepower - Maximum
- 2
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Material - Mounting Hardware
- Screw Mounting
- Industry Standard(s)
- Certified to CSA 22.2, No. 42 File 285 Guide RTRT Fed Spec WC596G NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
- OEM Brand Name
- Hubbell Wiring Device-Kellems
Description
• Deep nylon body design delivers increased impact resistance
• One-piece brass integral ground strap
• Finder Groove Face
• Deep body design with circuit ID face
• One-piece brass integral ground strap
• Finder Groove Face
• Deep body design with circuit ID face
Dimensions
- Dimensions
- 3.28 in x 1.65 in x 1.19 in
- Height
- 1.19 in
- Wire Size
- #14 AWG to #10 AWG
- Width
- 1.65 in
- Display Size
- Standard Sized Product
- Length
- 3.28 in
- Maximum Wire Size
- 10 AWG
- Face Plate Height
- 2.7 in
- Mount Hole Center-to-Center Height
- 3.3 in
- Overall Depth
- 1.2 in
- Face Plate Width
- 1.7 in
- Minimum Wire Size
- 14 AWG
