  11. Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

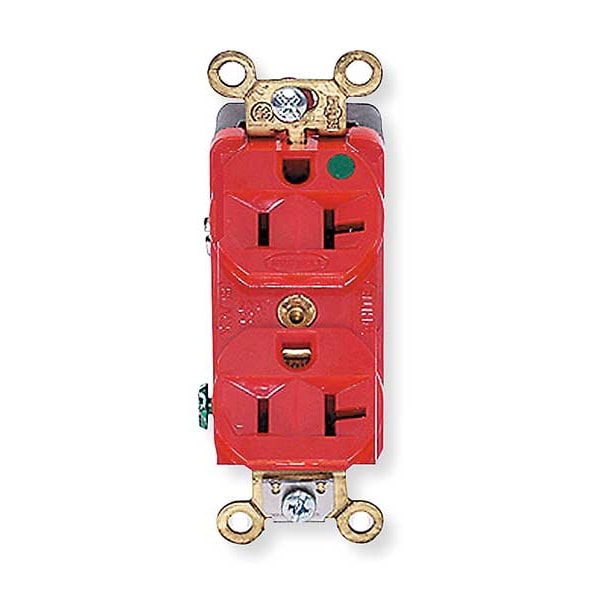

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL8300ILR - main

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL8300ILR

  • Zoro # G0972474

product price: $52.29
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL8300ILR
Zoro #
G0972474
UPC #
783585016504
Country of Origin
United States

Dimensions

Wire Size
#12 AWG to #10 AWG
Dimensions
3.28 in x 1.33 in x 1.05 in
Display Size
Standard Sized Product
Minimum Wire Size
12 AWG
Face Plate Width
1.6 in
Overall Depth
1.1 in
Face Plate Height
2.7 in
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Red
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
HP
1 hp
Weather Resistant - Plugs and Receptacles
No
Number of Gangs
1
Weather Resistant
No
Surge Suppression
No
Special Features
Illuminated
Outlet Type - Plugs and Receptacles
Standard Duplex
Application Environment
Heavy Use Hospital Grade
Outlet Type
Duplex
NEMA Configuration
5-20
Sub-Category
Duplex Receptacles
Corrosion Resistant
No
Color
Red
Wiring Method - Plugs and Receptacles
Back and Side
Voltage
125VAC
Tamper Resistant
No
Material
Impact Modified PBT/Reinforced PET
Mounting Type - Plugs and Receptacles
Flush
Mounting Type
Flush
Power Indicator
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Series
Hospital Grade
Style
Finder Groove Face
Nema Rating
5-20R
Type
Receptacle
Connectivity
Back and Side Wired Screw Terminals
Maximum Horsepower
1
Number Of Wires
3-Wire
Amperage
20 A
Dielectric Strength
Withstands 2,000V minimum
Brand
Hubbell Wiring Device-Kellems
Carton Quantity
10
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
For Location
Indoor
Connection Orientation
Straight
Maximum Operating Temperature
167 Degrees F
AFCI
No
Minimum Operating Temperature
-40 Degrees F
Polarized
Yes
Shrouded
No
Cover Type
No Cover
Surge Protection
No
Contact Material
Nickel-Plated Brass
NEMA Enclosure Rating
1
UL 94 Flammability Rating
V-2
GFCI
No
Includes Mounting Hardware
Yes
Housing Material
Polycarbonate
Horsepower Rating
1 hp
Grade
Hospital Grade Fed. Spec.
Current Interrupting
Certified for current interrupting at full rated current
Flammability
UL 94V-2
Device Grade
Heavy Duty Spec Grade
Terminal Accommodation
#12-#10 AWG stranded or solid copper wire only
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Device Color
Red
Dielectric Voltage
Withstands 2,000V minimum
Poles and Wires
2 Pole, 3 Wire
Terminal Identification
Terminals identified in accordance with UL 498 and CSA

Description

The HUBBELL 20A Duplex Receptacle 125VAC 5-20R RD is a Hospital Grade: Rated and constructed to meet applicable hospital grade requirements. It features a compact, impact-resistant polycarbonate housing and is rated for 20 amps at 125 volts AC. The device includes both back and side wired screw terminals to accommodate #12–#10 AWG copper wire, supporting flexible installation options in flush mount applications.


Key Features of the HUBBELL 20A Duplex Receptacle:

  • Hospital Grade: Rated and constructed to meet applicable hospital grade requirements.

  • Amperage/Voltage: Rated for 20 A, 125 VAC operation with NEMA 5-20R configuration.

  • Wiring Options: Back and side wired screw terminals accept #12–#10 AWG stranded or solid copper wire only.

  • Contact Material: Nickel-plated brass contacts; see manufacturer specifications for details on material properties.

  • Grounding System: Four-point grounding system designed in accordance with manufacturer specifications.

  • Impact Resistance: Impact-modified PBT/reinforced PET construction with a finder groove face design; see manufacturer documentation for additional information on material characteristics.

  • Face includes two LEDs as specified by the manufacturer.

  • Circuit Interrupting Capability: Certified per supplier documentation; rated dielectric voltage minimum 2,000V.

  • Mounting Type: Flush mount design with included mounting hardware and grounding clip; standard size product dimensions (3.28" x 1.33" x 1.05").

  • Screw Terminal Identification: Terminals identified per UL498/CSA standards for proper wiring connections.
