Shop LEGRAND

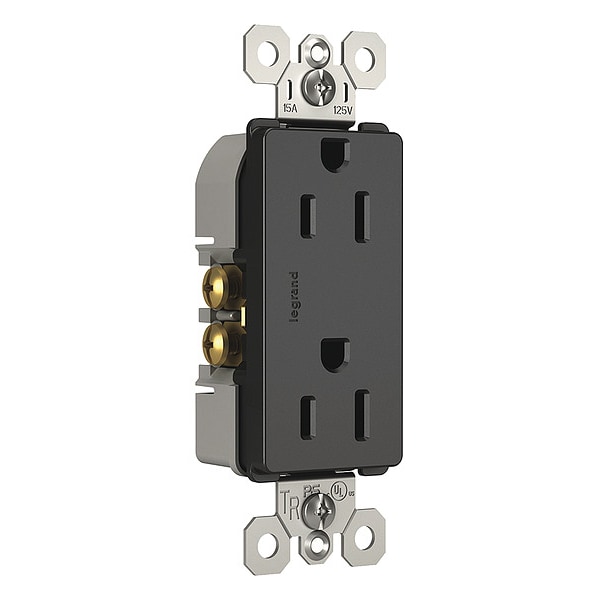

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 885TRGCC12

  • Zoro # G8036175

product price:
$
5.99
/ea
Sold in multiples of 2 for $11.98

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
885TRGCC12
Zoro #
G8036175
UPC #
-
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.2 in
Overall Depth
1 in
Maximum Wire Size
12 AWG
Face Plate Height
2.6 in
Face Plate Width
1.3 in
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Width
0.9 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Push In
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Graphite
Mount Type
Flush
Standards
cULus Listed
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Mounting Type
Box
Weather Resistant - Plugs and Receptacles
No
Power Indicator
No
Tamper Resistant
Yes
Surge Suppression
No
Mounting Type - Plugs and Receptacles
Flush
Material
Thermoplastic
Application Environment
General Purpose
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Includes
Grounding Clip, Mounting Hardware
Outlet Type - Plugs and Receptacles
Decorator Duplex
Wiring Method - Plugs and Receptacles
Push and Side
Number of Gangs
1
Outlet Type
Tamper-Resistant
Grade
General Use
AFCI
No
Includes Mounting Hardware
Yes
Market
Residential
Contact Material
Brass
Connection Orientation
Straight
Housing Material
Plastic
Surge Protection
No
GFCI
No
Nema Rating
15A
Indoor/Outdoor
Indoor
Finish
Graphite
Environmental Conditions
95 (relative humidity, non-condensing)
Is Tamper-Resistant
Yes
Number of Receptacles
2
NEMA Configuration Code
5-15R
NEMA Enclosure Rating
5
Shrouded
No
Cover Type
No Cover
Polarized
No
Number of Wall Plates Included
0
Series
Radiant(R)
IP Rating
Not Rated
Hub Type
Feed Through
Number of Outlets
2

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Graphite, Housing Material Plastic, Mount Type Recessed, NEMA Enclosure Rating 5, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized No, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards cULus Listed, Voltage Rating 125V AC
