  6. Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

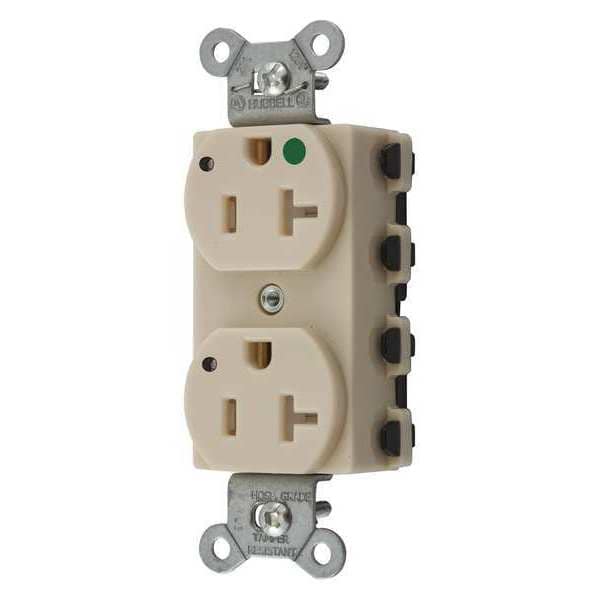

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded SNAP8300ILTRA - main

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # SNAP8300ILTRA

  • Zoro # G4440585

product price:  $27.19
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP8300ILTRA
Zoro #
G4440585
UPC #
783585553511
Country of Origin
Mexico

Dimensions

Width
1.64 in
Height
1.1 in
Maximum Wire Size
12 AWG
Face Plate Width
1.6 in
Face Plate Height
2.6 in
Overall Depth
1.1 in
Mount Hole Center-to-Center Height
3.3 in
Dimensions
3.28 in x 1.64 in x 1.1 in
Wire Size
#12 AWG
Length
3.28 in
Display Size
Standard Sized Product

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Snap In Module
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Tamper Resistant
Yes
Weather Resistant
No
Outlet Type - Plugs and Receptacles
Standard Duplex
Weather Resistant - Plugs and Receptacles
No
Material
Nylon
Voltage
125VAC
NEMA Rating
1
Wiring Method
Back
Outlet Type
Duplex
Sub-Category
Duplex Receptacles
Corrosion Resistant
No
Mounting Type
Flush
Application Environment
Commercial
Number of Gangs
1
Surge Suppression
No
Power Indicator
No
Wiring Method - Plugs and Receptacles
Modular
Mounting Type - Plugs and Receptacles
Flush
HP
1 hp
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
NEMA Configuration
5-20
Maximum Operating Temperature
167 Degrees F
Contact Material
Brass
Connection Orientation
Straight
Grade
Hospital Grade Fed. Spec.
Housing Material
Nylon
Market
Commercial
Includes
Wall Plate or Weatherproof Cover
NEMA Enclosure Rating
1
Shrouded
No
Cover Type
No Cover
AFCI
No
Polarized
Yes
UL 94 Flammability Rating
V-2
Minimum Operating Temperature
-40 Degrees F
Horsepower Rating
1 hp
For Location
Indoor
GFCI
No
Surge Protection
No
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Style
Smooth Face
Horsepower - Maximum
1
Series
Hospital Grade
Application
Hospital Grade
Dielectric Strength
Withstands 2,000V minimum
Wattage
2500 W
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Number Of Conductors
3-Wire Grounding
Industry Standard(s)
CSA Certified, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Performance
Electrical: Current Interrupting- Certified for current interrupting at full rated current Electrical: Dielectric Voltage- Withstands 2,000V minimum Mechanical: Product Identification Ratings are a permanent part of the device Environmental: Flammability- UL 94V-2 Environmental: Operating Temperature- Maximum continuous 75°C minimum -40°C (w/o impact)
OEM Brand Name
Hubbell Wiring Device-Kellems
Indicator(s) Type
Green LED

Description

The HUBBELL SNAPConnect® Hospital Grade Duplex Receptacle is a 20 amp, 125V AC flush mount outlet suitable for use in commercial and hospital settings. This standard duplex receptacle features modular wiring with a connectorized design, allowing the terminal to be snapped into place after rough-in installation. The device includes tamper-resistant shutters and an LED indicator, and is suitable for indoor use in dry locations.


Key Features of the HUBBELL SNAPConnect® Hospital Grade Duplex Receptacle:

  • Amperage/Voltage: Rated for 20 A at 125V AC

  • NEMA Configuration: 5-20R duplex outlet with straight blade orientation

  • Mounting Type: Flush mount; single gang configuration

  • Wiring Method: Modular back-wired connection using #12 AWG wire

  • Tamper Resistant: Built-in tamper-resistant shutters present on device

  • Indicator Type: Green LED indicator present on device face

  • Material & Construction: Nylon housing with brass contacts; smooth face style

  • Standards Compliance: CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL Listed to UL498 File E2186

  • Operating Temperature Range: -40°F minimum to +167°F maximum (continuous)
