Shop HUBBELL WIRING DEVICE-KELLEMS

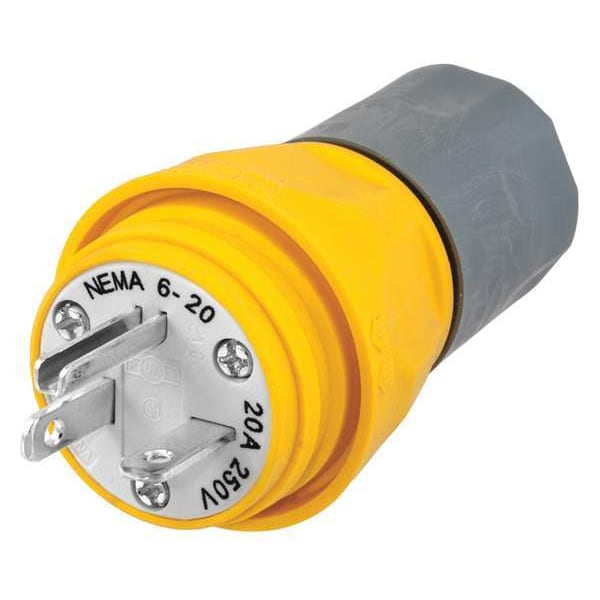

Watertight Straight Blade Plug, 6-20P, 20 A, 250V AC, 2 Pole, Screw Terminals, Grounded

  • Mfr # HBL14W48

  • Zoro # G0070126

product price:
$
34.83
/ea

Key Features

NEMA Plug Configuration
6-20P
Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HBL14W48
Zoro #
G0070126
UPC #
783585131214
Country of Origin
United States
Item
Watertight Straight Blade Plug
NEMA Plug Configuration
6-20P
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Grounding
Grounded
Housing Color
Yellow
IP Rating
IP69K
Standards
CSA, UL
Resistance Properties
Corrosion Resistant, Impact Resistant, Watertight
Grade - Plugs and Receptacles
Industrial
Grade
Industrial
NEMA Configuration
6-20
HP
2 hp
Antimicrobial
No
Voltage
250VAC
Corrosion Resistant
Yes
Material
Thermoplastic Elastomer/Valox
NEMA Plug Configuration - Plugs and Receptacles
6-20P
Number of Wires
3
Phase - Plugs and Receptacles
1
Special Features
Corrosion resistant
Market
Industrial
Insulation Material
Thermoplastic
NEMA Enclosure Rating
4X
Housing Material
Thermoplastic Elastomer, Valox
Polarized
Yes
Horsepower Rating
2 hp
Temp. Rise
30°C
Body Material
Thermoplastic Elastomer
Dielectric Strength
2500V AC
Bushing Material
Black Elastomer
UV Resistance
All Exposed Materials are UV Stabilized
Retainer Material
Clear Polycarbonate
Contact Material
Nickel Plated Brass
Operating Temp.
-40 to 60°C
Series
Watertight Devices

Description

• Smooth body design minimizes collection points simplifying thewash down process
• Strain relief nut always seals on the body, minimizing debris collection
• Stainless steel hardware and corrosion-resistant connection points
