  11. Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount

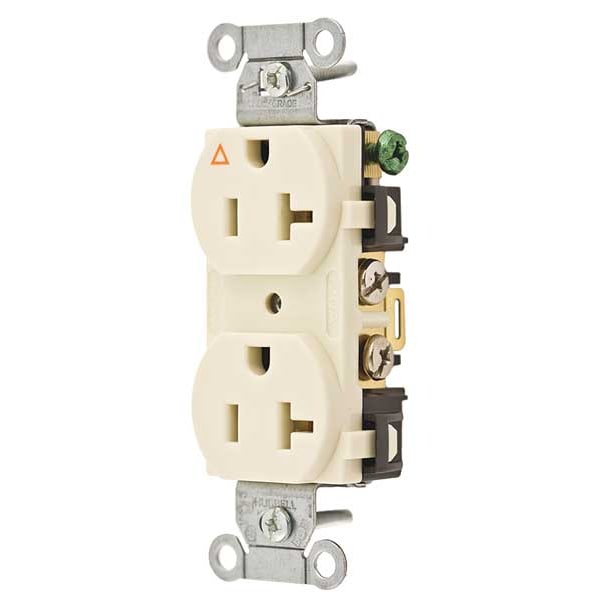

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount IG20CRLA - main

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount

  • Mfr # IG20CRLA

  • Zoro # G1037827

product price: $8.99
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IG20CRLA
Zoro #
G1037827
UPC #
783585147673
Country of Origin
China

Dimensions

Display Size
Standard Sized Product
Wire Size
#12 AWG to #10 AWG
Dimensions
1.32 in x 1.06 in x 3.28 in
Maximum Wire Size
10 AWG
Face Plate Height
2.7 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.3 in
Minimum Wire Size
12 AWG
Overall Depth
3.3 in
Height
3.28 in
Length
1.32 in
Width
1.06 in

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Isolated Ground
Housing Color
Light Almond
Mount Type
Flush
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Corrosion Resistant
Flange Type
Non-Flanged
Number of Gangs
1
Weather Resistant
No
Special Features
Isolated Ground
Weather Resistant - Plugs and Receptacles
No
Application Environment
Commercial
Tamper Resistant
No
Outlet Type
Duplex
Corrosion Resistant
No
HP
1 hp
Voltage
125VAC
Mounting Type
Flush
Material
Nylon
Surge Suppression
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Mounting Type - Plugs and Receptacles
Flush
Sub-Category
Duplex Receptacles
Outlet Type - Plugs and Receptacles
Standard Duplex
NEMA Configuration
5-20
Power Indicator
No
Color
Light Almond
Wiring Method - Plugs and Receptacles
Side
Maximum Horsepower
1
Type
Standard Duplex
Nema Rating
5-20R
Connectivity
Side Wired
Series
Commercial Specification Grade
Carton Quantity
10
Dielectric Strength
Withstands 2,000V minimum
Style
Smooth Face
Brand
Hubbell Wiring Device-Kellems
Number Of Wires
3-Wire
Amperage
20 A
For Location
Indoor
Horsepower Rating
1 hp
UL 94 Flammability Rating
V-2
Includes Mounting Hardware
Yes
Connection Orientation
Straight
Grade
Federal Specification
Market
Commercial
Housing Material
Nylon
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Surge Protection
No
Contact Material
Brass
GFCI
No
Maximum Operating Temperature
167 Degrees F
Polarized
Yes
Cover Type
No Cover
NEMA Enclosure Rating
1
Minimum Operating Temperature
-40 Degrees F
AFCI
No
Shrouded
No
Mounting Strap
.040 in. (1) Galvanized steel
Automatic Self-grounding Staple
Stainless steel
Flammability
UL 94 V-2
Terminal Accommodation
#12-#10 AWG copper stranded or solid conductor only
Current Interrupting
Certified for current interrupting at full rated current
Base
Nylon
Mounting Screws
Galvanized Steel
Terminal Screws
Plated steel
Power Contacts
.030 in. (.8) Brass
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Wire Clamp
.062 in. (1.6) Nickel plated steel
Dielectric Voltage
Withstands 2,000V minimum
Device Color
Light Almond
Face
Nylon
Ground Contacts
Brass
Material - Mounting Hardware
Screw Mounting
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
OEM Brand Name
Hubbell Wiring Device-Kellems
Horsepower - Maximum
1
Application
Commercial Specification Grade
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Wattage
2500 W
Industry Standard(s)
Certified to CSA C22.2, No. 42 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186

Description

The HUBBELL 20A Duplex Receptacle 125VAC 5-20R Almond is a specification grade duplex outlet rated for indoor use. It includes an isolated ground configuration that separates the ground contacts from the mounting strap and conventional grounding system; intended for installations where a dedicated grounding path is specified. The receptacle has a smooth nylon face with triangle marking denoting its isolated ground feature; supports side-wired connections.


Key Features of the HUBBELL 20A Duplex Receptacle:

  • Amperage/Voltage: Rated for 20 A at 125 VAC

  • NEMA Configuration: 5-20R, standard duplex outlet type

  • Grounding: Isolated ground design with green grounding screw directly connected to brass ground contacts

  • Material Construction: Nylon base and face; brass power and ground contacts; galvanized steel mounting strap

  • Wiring Method: Side wired with screw terminals accommodating #12–#10 AWG copper wire (stranded or solid)

  • Operating Temperature Range: -40°C to +75°C (without impact)

  • Certification & Standards: UL Listed (UL498), CSA Certified C22.2 No.42, Federal Specification W-C-596, NEMA WD-6 compliant

  • Dielectric Strength & Flammability Rating: Withstands minimum 2,000V dielectric voltage; UL94 V-2 flammability rating
