  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

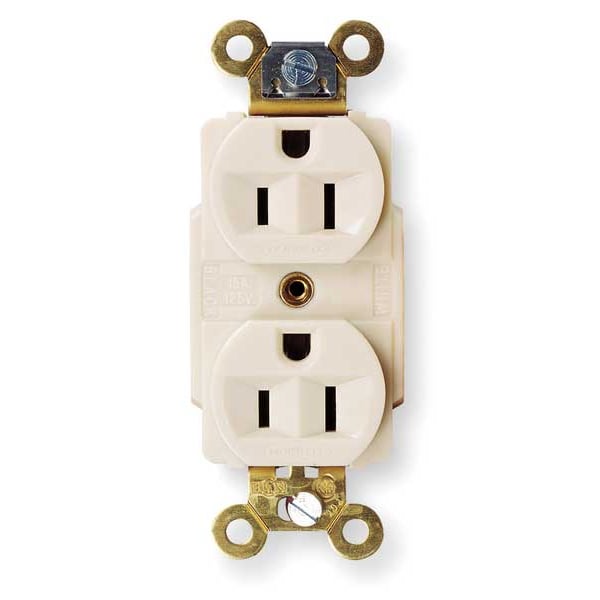

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5262W - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5262W

  • Zoro # G2930173

product price: $28.35
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5262W
Zoro #
G2930173
UPC #
783585435206
Country of Origin
United States

Dimensions

Height
1.19 in
Display Size
Standard Sized Product
Width
1.65 in
Dimensions
3.28 in x 1.65 in x 1.19 in
Length
3.28 in
Wire Size
#14 AWG to #10 AWG
Overall Depth
1.2 in
Face Plate Width
1.7 in
Face Plate Height
2.7 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
White
Mount Type
Flush
IP Rating
Not Rated
Standards
CSA Certified, NEMA WD-1, NEMA WD-6, UL Listed
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
HP
1/2 hp
NEMA Configuration
5-15
Wiring Method
Back, Side
Tamper Resistant
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Application Environment
Harsh and Heavy Use Industrial
Outlet Type
Duplex
Power Indicator
No
Voltage
125VAC
Mounting Type - Plugs and Receptacles
Flush
Color
Blanc
Material
Nylon
Mounting Type
Flush
Wiring Method - Plugs and Receptacles
Back and Side
Weather Resistant
No
Corrosion Resistant
No
Surge Suppression
No
Sub-Category
Duplex Receptacles
Outlet Type - Plugs and Receptacles
Standard Duplex
Weather Resistant - Plugs and Receptacles
No
Number of Gangs
1
UPC
783585000000
Environmental Rating
Indoor Dry Unless Protected By Additional Means
Carton Quantity
10
Maximum Horsepower
0.5
Number Of Wires
3-Wire
Dielectric Strength
Withstands 2,000V minimum
Style
Finder Groove Face
Application
Extra Heavy Duty Specification Grade
Amperage
15 A
Series
Extra Heavy Duty
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Nema Rating
5-15R
Brand
Hubbell Wiring Device-Kellems
Connectivity
Back and Side Wired
Type
Standard Duplex
Weight
0.25 lb
Mounting Hardware Material
Screw Mounting
Wattage
1875 W
Connection Orientation
Straight
Minimum Operating Temperature
-40 Degrees F
Grade
Federal Specification
UL 94 Flammability Rating
V-0, V-2
Shrouded
No
Cover Type
No Cover
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
AFCI
No
Surge Protection
No
Contact Material
Nickel-Plated Brass
For Location
Indoor
Maximum Operating Temperature
167 Degrees F
GFCI
No
Horsepower Rating
1/2 hp
NEMA Enclosure Rating
1
Includes Mounting Hardware
Yes
Market
Industrial
Polarized
Yes
Housing Material
Nylon (Face)
Poles and Wires
2 Pole, 3-Wire Grounding
Rating
15A, 125V
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Ground Screw Material
#10-32 Silicon Bronze (Green)
Mounting Screw Material
Steel-Zinc Plated
Power Contacts Material
.037" (.9) Brass
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Mounting Strap Material
.050" (1.3) Brass
Current Interrupting
Certified for current interrupting at full rated current
Dielectric Voltage
Withstands 2,000V minimum
Receptacle Grade
Extra Heavy Duty Spec Grade
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Face Style
Finder Groove
Horsepower
0.5
Receptacle Style
Duplex
Device Color
White
Standard
NEMA
Base Material
Reinforced PET
Top Material
Nylon
Certification
-UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Other Available Colors
Brown, Black, Gray, Ivory, Red, White
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Flammability
UL 94 V2 or better, Top: UL 94V-2, Base: UL 94V-0
Auto Ground Clip Material
Stainless Steel
Face Shape
Traditional
Terminal Screw Material
#10-32 Silicon Bronze (Ni plate if neutral)
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Material - Mounting Hardware
Screw Mounting
Horsepower - Maximum
0.5
OEM Brand Name
Hubbell Wiring Device-Kellems
Industry Standard(s)
Certified to CSA 22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA

Description

HBL® Extra Heavy Duty Max Industrial Series - Hubbell’s commitment to quality continually reinforces a philosophy of unrivaled performance. No Hubbell device exemplifies this philosophy more than the HBL5262. While all Hubbell receptacles are designed and manufactured to withstand even the harshest environments, none match the total performance of the HBL5262. Whether in a factory, office building or school, the Hubbell HBL5262 is the receptacle of choice when people are depending on the safety and reliability of a receptacle. The safest, most reliable design for a low resistance flow of fault currents. Oversized “bell" shaped ground contacts, along with nickel plated steel retaining shields, help minimize damage to the grounding system during abrupt pullout.
•
