  11. Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount

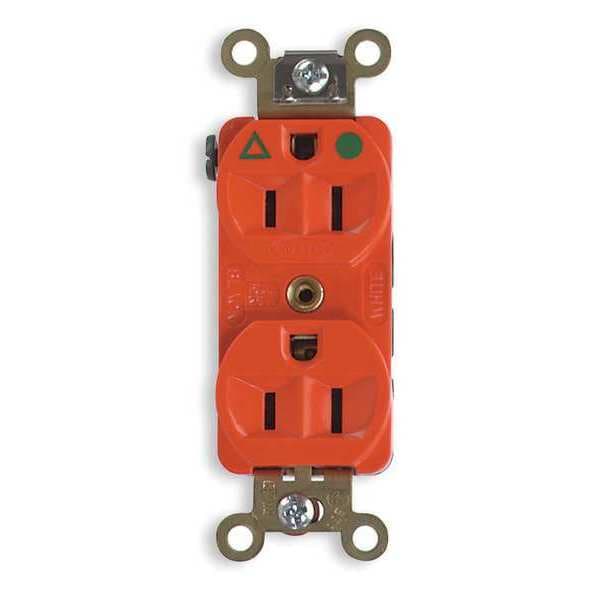

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount IG5362I - main

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount

  • Mfr # IG5362I

  • Zoro # G2388897

product price: $41.19
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IG5362I
Zoro #
G2388897
UPC #
783585876887
Country of Origin
United States

Dimensions

Minimum Wire Size
12 AWG
Face Plate Height
2.7 in
Overall Depth
1.1 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.7 in
Maximum Wire Size
10 AWG
Width
1.33 in
Display Size
Standard Sized Product
Length
3.28 in
Wire Size
#12 AWG to #10 AWG
Dimensions
3.28 in x 1.33 in x 1.05 in
Height
1.05 in

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Isolated Ground
Housing Color
Ivory
Mount Type
Flush
IP Rating
IP20
Standards
CSA C22.2 No. 42, NEMA WD-6, UL 498, UL Federal Specification WC-596
Resistance Properties
Isolated Ground
Flange Type
Non-Flanged
Wiring Method - Plugs and Receptacles
Back and Side
NEMA Configuration
5-20
Corrosion Resistant
No
Special Features
Isolated Ground
Surge Suppression
No
Outlet Type - Plugs and Receptacles
Standard Duplex
Power Indicator
No
Mounting Type
Flush
Tamper Resistant
No
Application Environment
Industrial
Mounting Type - Plugs and Receptacles
Flush
Weather Resistant
No
Material
Nylon/Reinforced PET
Outlet Type
Duplex
Weather Resistant - Plugs and Receptacles
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Sub-Category
Duplex Receptacles
HP
1 hp
Number of Gangs
1
Voltage
125VAC
Type
Duplex
Horsepower Rating
1 hp
Surge Protection
No
Market
Commercial, Industrial
Shrouded
No
Polarized
Yes
AFCI
No
Grade
Federal Specification
GFCI
No
Cover Type
No Cover
NEMA Enclosure Rating
1
Minimum Operating Temperature
-40 Degrees F
Connection Orientation
Straight
Maximum Operating Temperature
167 Degrees F
For Location
Indoor
UL 94 Flammability Rating
V-0, V-2
Housing Material
Nylon
Contact Material
Nickel-Plated Brass
Includes Mounting Hardware
Yes
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Rating
20A, 125V
Auto Ground Clip Material
Stainless Steel
Dielectric Voltage
Withstands 2,000V minimum
Device Color
Ivory
Mounting Strap Material
.050" (1.3) Brass
Terminal Screw Material
#8-32 Brass /Ni plated for neutral
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Power Contacts Material
.037" (.9) Phosphor Bronze
Base Material
Reinforced PET
Face Shape
Traditional
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Terminal Accommodation
#12-#10 AWG stranded or solid copper wire only
Flammability
Top: UL 94V-2, Base: UL 94V-0, UL 94 V2 or better.
Receptacle Grade
Heavy Duty Spec Grade
Horsepower
1
Current Interrupting
Certified for current interrupting at full rated current
Certification
UL Listed to UL 498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-6 requirements, Certified to CSA, C22.2, No. 42 File 285.
Mounting Screw Material
Steel-Zinc Plated
Enhancement
Isolated Ground
Face Style
Finder Groove
Receptacle Style
Duplex
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Poles and Wires
2 Pole, 3-Wire Grounding
Standard
NEMA
Other Available Colors
Orange, Gray, Ivory, Red
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Top Material
Nylon
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Material - Mounting Hardware
Screw Mounting
Horsepower - Maximum
1
Dielectric Strength
Withstands 2,000V minimum
OEM Brand Name
Hubbell Wiring Device-Kellems
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Nema Rating
5-20R
Wattage
2500 W
Industry Standard(s)
Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. WC596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Application
Extra Heavy Duty Specification Grade
Series
Heavy Duty
Style
Finder Groove Face
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA

Description

The HUBBELL 20A Duplex Receptacle 125VAC 5-20R IV is a Specification grade duplex receptacle rated for commercial and industrial applications. This duplex receptacle features an isolated ground; ground contacts are separated from the mounting strap and conventional grounding system. It accommodates both back and side wiring with screw terminals, supports #12-#10 AWG stranded or solid copper wire, and is rated for 20 amps at 125 volts AC.


Key Features of the HUBBELL - 20A Duplex Receptacle:

  • Isolated Ground: Triangle marking on face indicates isolated ground design for dedicated grounding paths.

  • Amperage/Voltage Rating: Rated for 20A, 125V AC (NEMA 5-20R configuration).

  • Wiring Method: Back and side wired screw terminals support #12–#10 AWG copper wire only.

  • Material Construction: Nylon housing with reinforced PET base; nickel-plated brass contacts; phosphor bronze power contacts.

  • Mounting Type: Flush mount with included mounting hardware; fits standard gang boxes.

  • Face Style: Finder Groove face is intended to assist with device identification during installation or maintenance.

  • Circuit Certification & Standards: UL Listed to UL498 File E2186, CSA Certified C22.2 No.42 File 285, Federal Specification W-C-596, NEMA WD-6 compliant.

  • Operating Temperature Range: Maximum continuous temperature of 75°C (167°F), minimum -40°C without impact.

  • Dielectric Strength & Flammability Ratings: Withstands a dielectric voltage of at least 2,000V; top flammability rating UL94 V-2, base UL94 V-0 or better.
