  6. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

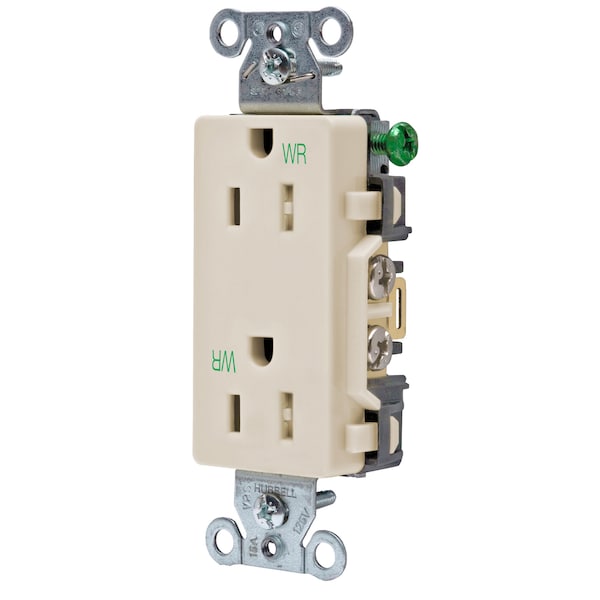

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded DR15LAWRTR - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # DR15LAWRTR

  • Zoro # G600701052

product price:  $14.55
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DR15LAWRTR
Zoro #
G600701052
UPC #
783585144801
Country of Origin
China

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
Standards
C22.2, CSA, No. 42, UL Listed
Resistance Properties
Tamper and Weather Resistant
Flange Type
Non-Flanged
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Base Material
Nylon
Device Color
Light Almond
Product Type
Flush-receptacles
Receptacle Grade
StyleLine Decorator Series, Specification Grade, Tamper and Weather Resistant
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Terminal Screw Material
#8-32 Brass, Multiple Drive
Rating
15A, 125V
Face Shape
Decorator
Dielectric Voltage
Withstands 2,000V minimum
Certification
UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42
Face Style
Smooth Face
Current Interrupting
Certified for current interrupting at full rated current
Auto Ground Clip Material
Stainless Steel
Poles and Wires
2 Pole, 3-Wire Grounding
Standard
NEMA
Flammability
UL 94 V2.
Ground Screw Material
#8-32 Brass, Multiple Drive
Mounting Strap Material
.040" (1) Steel (Galvanized)
Horsepower
0.5
Power Contacts Material
.030" (.8) Brass
Mounting Screw Material
Steel-Zinc Plated
Top Material
Nylon

Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Tamper-Resistant Duplex, Decorator/Commercial/Industrial Grade, 2-Pole3-Wire Grounding, 15A, 125V, 5-15R, Light Almond, Single Pack
