  11. Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Isolated Ground

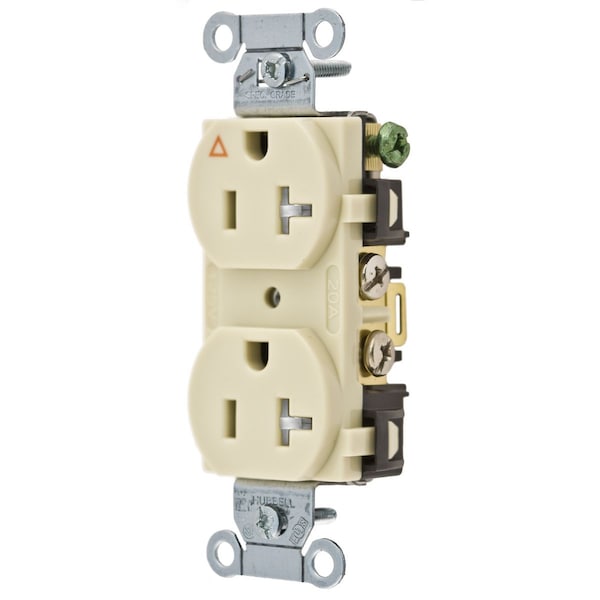

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Isolated Ground IG5352ITR - main

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Isolated Ground

  • Mfr # IG5352ITR

  • Zoro # G200701919

product price: $24.79
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IG5352ITR
Zoro #
G200701919
UPC #
783585540054
Country of Origin
China

Dimensions

Height
1.07 in
Width
1.57 in
Length
3.28 in
Dimensions
3.28 in x 1.57 in x 1.07 in
Wire Size
#12 AWG to #10 AWG
Display Size
Standard Sized Product

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Isolated Ground
Housing Color
Ivory
Standards
CSA 22.2, NEMA® WD-6 Compliant, No. 42, UL Listed
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Material
Nylon
Application
Hubbell-Pro Heavy Duty Specification Grade
Dielectric Voltage
Withstands 2,000V minimum
Ground Contacts
.031" (.8) Brass
Terminal Screws
Brass
Automatic Self-grounding Clip
Stainless steel
Mounting Strap
Galvanized steel
Terminal Accommodation
#12-#10 AWG copper stranded or solid conductor only
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Power Contacts
.031 in. (.8) Brass
Clamp
Nickel plated steel
Base
Nylon
Mounting Screws
Stainless Steel
Operating Temperature
Maximum continuous 75°C; minimum -40°C (w/o impact)
Flammability
UL 94 V-2
Current Interrupting
Certified for current interrupting at full rated current
Device Color
Ivory
Face
Nylon
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Material - Mounting Hardware
Screw Mounting
Dielectric Strength
Withstands 2,000V minimum
Horsepower - Maximum
1
Nema Rating
5-20R
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
OEM Brand Name
Hubbell Wiring Device-Kellems
Wattage
2500 W
Style
Smooth Face
Industry Standard(s)
Certified to CSA 22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Series
Hubbell-PRO
Number Of Wires
3-Wire

Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Tamper ResistantDuplex Receptacle, Isolated Ground, Commercial Grade, 20A 125V, 2-Pole3-Wire Grounding, 5-20R, Back and Side Wired, Ivory
