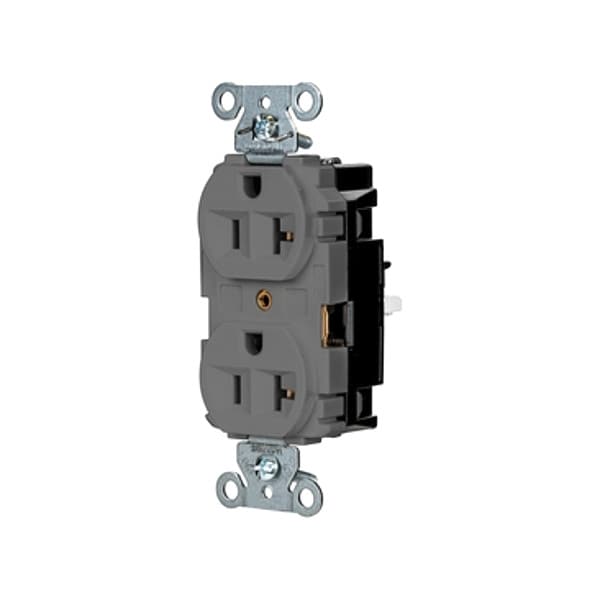

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

  • Mfr # 5362STGY
  • Zoro # G210105400
product price:
$
9.92
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5362STGY
Zoro #
G210105400
UPC #
783585727592
Country of Origin
China

Dimensions

Face Plate Width
1.6 in
Face Plate Height
2.8 in
Maximum Wire Size
10 AWG
Overall Depth
1.4 in
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in
Fits Chest Size
Easy Access Split Circuit Tab, No Need for Screwdriver and Torque Wrench, Spring Termination Eliminates Strand Relaxation, Triple and Double Wipe Contacts

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Push In
Wiring Method
Back
Grounding
Grounded
Housing Color
Gray
Mount Type
Surface
IP Rating
IP20
Standards
CSA Certified 22.2 No 42 File 285, Fed. Spec. W-C-596, NEMA: WD-6, UL 498 File No E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Includes
Mounting Hardware
Number of Gangs
1
Horsepower Rating
1 hp
Market
Industrial
For Location
Indoor
Features
Easy Access Split Circuit Tab, No Need for Screwdriver and Torque Wrench, Spring Termination Eliminates Strand Relaxation, Triple and Double Wipe Contacts
UL 94 Flammability Rating
V-2
Grade
Federal Specification
Maximum Operating Temperature
167 Degrees F
Includes Mounting Hardware
Yes
Connection Orientation
Straight
Minimum Operating Temperature
-40 Degrees F
Contact Material
Copper Alloy
Housing Material
Thermoplastic
For Environment
Dry
Number of Outlets
2
Polarized
Yes
GFCI
No
Hub Type
Feed Through
Shrouded
No
AFCI
No
Surge Protection
No
NEMA Enclosure Rating
1
Cover Type
No Cover

Description

The HUBBELL Duplex Straight Blade Receptacle is a 20A, 125V AC device intended for indoor industrial applications. It features the EdgeConnectTM screwless termination system, allowing wire connection via insertion and plunger mechanism; does not require additional tools. This duplex receptacle supports back wiring with push-in connections and is rated for use in dry locations with tamper resistant features and grounding capability.


Key Features of the HUBBELL Duplex Straight Blade Receptacle:

  • Termination System: Screwless, push-in wire connection using EdgeConnectTM technology

  • Current/Voltage Rating: Rated for 20 A at 125V AC

  • Wiring Method: Back wired; accepts wire sizes from 10 AWG to 14 AWG

  • NEMA Configuration: 5-20R duplex outlet with two outlets per gang

  • Contact Material: Copper alloy contacts with triple and double wipe design

  • Tamper Resistant: Includes tamper resistant features

  • Mounting Type: Surface mount; includes mounting hardware

  • Housing Material/Color: Thermoplastic housing in gray color

  • NEMA Enclosure Rating/IP Rating: NEMA Type 1 enclosure, IP20 rated for indoor use in dry environments

  • Standards Compliance: CSA Certified (22.2 No.42 File 285), Federal Specification W-C-596, NEMA WD-6, UL Listed (UL498 File E2186)
