  11. Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

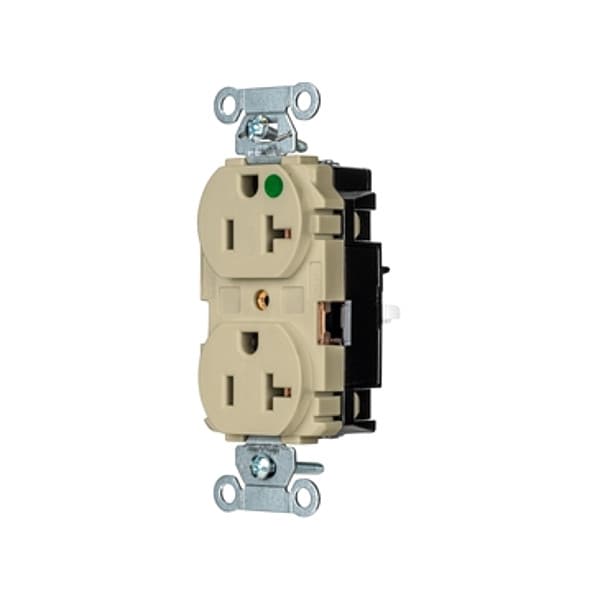

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded 8300STI - main

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

  • Mfr # 8300STI

  • Zoro # G210105523

product price: $22.15
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8300STI
Zoro #
G210105523
UPC #
783585726915
Country of Origin
China

Dimensions

Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.6 in
Overall Depth
1.4 in
Face Plate Height
2.8 in
Maximum Wire Size
10 AWG

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Spring Clamp Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
Ivory
Mount Type
Surface
IP Rating
IP20
Standards
CSA Certified 22.2 No 42 File 285, Fed. Spec. W-C-596, NEMA: WD-6, UL 498 File No E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Includes
Mounting Hardware
Number of Gangs
1
Grade
Hospital Grade
Minimum Operating Temperature
-40 Degrees F
Number of Outlets
2
Contact Material
Copper Alloy
Includes Mounting Hardware
Yes
Market
Commercial
Maximum Operating Temperature
167 Degrees F
For Environment
Dry
Housing Material
Thermoplastic
Features
Easy Access Split Circuit Tab, No Need for Screwdriver and Torque Wrench, Spring Termination Eliminates Strand Relaxation, Triple and Double Wipe Contacts
Connection Orientation
Straight
For Location
Indoor
UL 94 Flammability Rating
V-2
Horsepower Rating
1 hp
Shrouded
No
Cover Type
No Cover
Surge Protection
No
GFCI
No
Polarized
Yes
AFCI
No
NEMA Enclosure Rating
1
Hub Type
Feed Through

Description

The HUBBELL Duplex Straight Blade Receptacle is a hospital grade, tamper resistant electrical outlet rated for commercial indoor use in dry locations. It features the EdgeConnectTM screwless termination system that enables tool-free wire connections by inserting the wire and pressing down the plunger. This duplex receptacle supports back wiring with push-in connection type and accommodates 2 outlets per gang.


Key Features of the HUBBELL Duplex Straight Blade Receptacle:

  • Current Rating: Rated for 20 A at 125V AC

  • NEMA Configuration: 5-20R, single phase, polarized

  • Wire Size Compatibility: Accepts 10 AWG to 14 AWG wires

  • Termination Method: Back wired with spring termination; no screwdriver or torque wrench required

  • Tamper Resistant: Incorporates features intended to reduce unintended object insertion

  • Contact Material: Copper alloy contacts with triple and double wipe design

  • Housing Material: Thermoplastic housing in ivory color; includes mounting hardware

  • Operating Temperature Range: -40°F to 167°F maximum operating temperature

  • Circuit Tab Feature: Easy access split circuit tab for flexible wiring options

  • Standards Compliance: CSA Certified (22.2 No 42 File 285), UL Listed (UL498 File No E2186), NEMA WD-6, Fed. Spec. W-C-596 compliant
