  11. Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

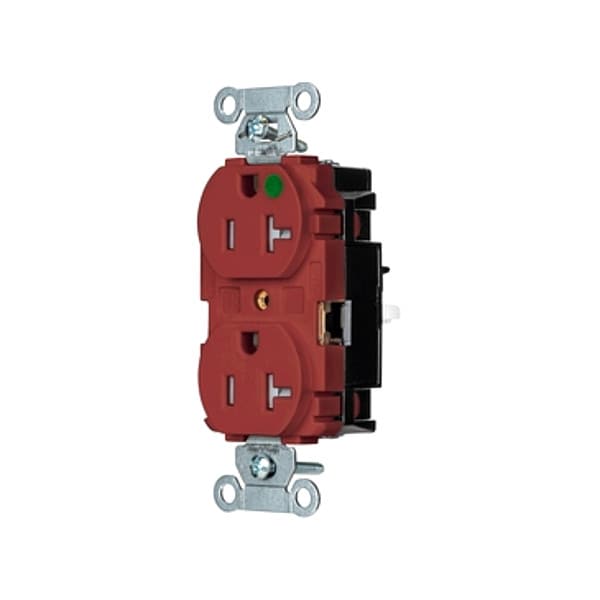

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded 8300STRTR - main

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

  • Mfr # 8300STRTR

  • Zoro # G810105503

product price: $23.83
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8300STRTR
Zoro #
G810105503
UPC #
783585727042
Country of Origin
China

Dimensions

Face Plate Width
1.6 in
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG
Face Plate Height
2.8 in
Overall Depth
1.4 in
Maximum Wire Size
10 AWG

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Spring Clamp Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
Red
Mount Type
Surface
IP Rating
IP20
Standards
CSA Certified 22.2 No 42 File 285, Fed. Spec. W-C-596, NEMA: WD-6, UL 498 File No E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Includes
Mounting Hardware
Number of Gangs
1
Includes Mounting Hardware
Yes
Housing Material
Thermoplastic
Features
Easy Access Split Circuit Tab, No Need for Screwdriver and Torque Wrench, Spring Termination Eliminates Strand Relaxation, Triple and Double Wipe Contacts
UL 94 Flammability Rating
V-2
Market
Commercial
Grade
Hospital Grade
For Environment
Dry
For Location
Indoor
Connection Orientation
Straight
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
167 Degrees F
Horsepower Rating
1 hp
Number of Outlets
2
Contact Material
Copper Alloy
GFCI
No
Cover Type
No Cover
Hub Type
Feed Through
Surge Protection
No
Polarized
Yes
Shrouded
No
AFCI
No
NEMA Enclosure Rating
1

Description

The HUBBELL Duplex Straight Blade Receptacle is a tamper resistant electrical outlet rated for commercial indoor use. It features the EdgeConnectTM screwless termination system that enables wire connection by inserting the wire and pressing down the plunger. This duplex receptacle supports back wiring with push-in connection type and accommodates 2 outlets in a single gang configuration.


Key Features of the HUBBELL Duplex Straight Blade Receptacle:

  • Current Rating: Rated for 20 A at 125V AC

  • NEMA Configuration: 5-20R, polarized and grounded

  • Wire Size Compatibility: Accepts 14 AWG to 10 AWG wires

  • Termination System: Screwless, spring-loaded push-in design does not require a screwdriver or torque wrench; includes spring termination mechanism

  • Contact Material: Copper alloy contacts with triple and double wipe design

  • Tamper Resistant: Yes

  • Housing Material & Color: Thermoplastic housing in red color; face plate dimensions are 2.8 in height x 1.6 in width

  • Mounting Type: Surface mount with included mounting hardware; non-flanged feed-through hub type

  • Circuit Tab Feature: Easy access split circuit tab allows flexible wiring options

  • Standards Compliance: CSA Certified (22.2 No 42 File 285), UL Listed (UL498 File No E2186), NEMA WD-6, Fed. Spec W-C-596 compliant
