- MFR #
- IG15CRWHI
- Zoro #
- G2655213
- UPC #
- 783585147574
- Country of Origin
- China
- Item

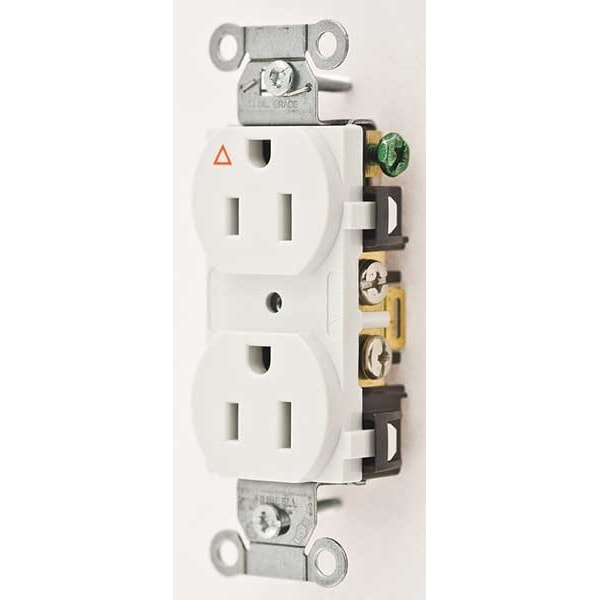

- Straight Blade Receptacle
- Receptacle Type
- Duplex
- NEMA Receptacle Configuration
- 5-15R
- Current Rating
- 15 A
- Voltage Rating
- 125V AC
- Phase
- Single
- Number of Poles
- 2
- Number of Wires
- 3
- Wire Connection Type
- Screw Terminals
- Wiring Method
- Side
- Grounding
- Isolated Ground
- Housing Color
- White
- Mount Type
- Flush
- IP Rating
- Not Rated
- Standards
- CSA Certified C22.2 No. 42, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
- Resistance Properties
- Corrosion Resistant
- Flange Type
- Non-Flanged
- Mounting Type - Plugs and Receptacles
- Flush
- Material
- Nylon
- Power Indicator
- No
- Weather Resistant
- No
- Outlet Type - Plugs and Receptacles
- Standard Duplex
- NEMA Receptacle Configuration - Plugs and Receptacles
- 5-15R
- NEMA Configuration
- 5-15
- HP
- 1/2 hp
- Sub-Category
- Duplex Receptacles
- Wiring Method - Plugs and Receptacles
- Side
- Corrosion Resistant
- Yes
- Voltage
- 125VAC
- Weather Resistant - Plugs and Receptacles
- No
- Number of Gangs
- 1
- Special Features
- Corrosion Resistant, Isolated Ground
- Outlet Type
- Duplex
- Surge Suppression
- No
- Tamper Resistant
- No
- Mounting Type
- Flush
- Application Environment
- Commercial
- Color
- White
- Carton Quantity
- 10
- Series
- Commercial Specification Grade
- Style
- Smooth Face
- Number Of Wires
- 3-Wire
- Brand
- Hubbell Wiring Device-Kellems
- Connectivity
- Side Wired Screw Terminals
- Nema Rating
- 5-15R
- Dielectric Strength
- Withstands 2,000V minimum
- Type
- Standard Duplex
- Maximum Horsepower
- 0.5
- Amperage
- 15 A
- Housing Material
- Nylon
- Market
- Commercial
- Contact Material
- Brass
- Polarized
- Yes
- Maximum Operating Temperature
- 167 Degrees F
- Cover Type
- No Cover
- For Location
- Indoor
- GFCI
- No
- Minimum Operating Temperature
- -40 Degrees F
- Includes
- Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
- Connection Orientation
- Straight
- Horsepower Rating
- 1/2 hp
- Includes Mounting Hardware
- Yes
- Surge Protection
- No
- AFCI
- No
- UL 94 Flammability Rating
- V-2
- Shrouded
- No
- NEMA Enclosure Rating
- 1
- Grade
- Federal Specification
- Terminal Accommodation
- #14-#10 AWG copper stranded or solid conductor only
- Device Color
- White
- Operating Temperatures
- Maximum continuous 75°C; minimum -40°C (w/o impact)
- Power Contacts
- .030 in. (.8) Brass
- Current Interrupting
- Certified for current interrupting at full rated current
- Base
- Nylon
- Wire Clamp
- .062 in. (1.6) Nickel plated steel
- Mounting Screws
- Galvanized Steel
- Dielectric Voltage
- Withstands 2,000V minimum
- Ground Contacts
- Brass
- Terminal Identification
- Terminals identified in accordance with UL 498 and CSA
- Face
- Nylon
- Mounting Strap
- .040 in. (1) Galvanized steel
- Flammability
- UL 94 V-2
- Automatic Self-grounding Staple
- Stainless steel
- Terminal Screws
- Plated steel
- Industry Standard(s)
- Certified to CSA C22.2, No. 42
Fed. Spec. W-C-596
NEMA® WD-6 Compliant
UL Listed to UL498 File No. E2186
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Horsepower - Maximum
- 0.5
- Material - Mounting Hardware
- Screw Mounting
- Wattage
- 1875 W
- OEM Brand Name
- Hubbell Wiring Device-Kellems
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Application
- Commercial Specification Grade
- Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current
Electrical - Dielectric Voltage - Withstands 2,000V minimum
Environmental - Flammability - UL 94 V-2
Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
Mechanical - Product Identification - Ratings are a permanent part of the device
Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only
Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
