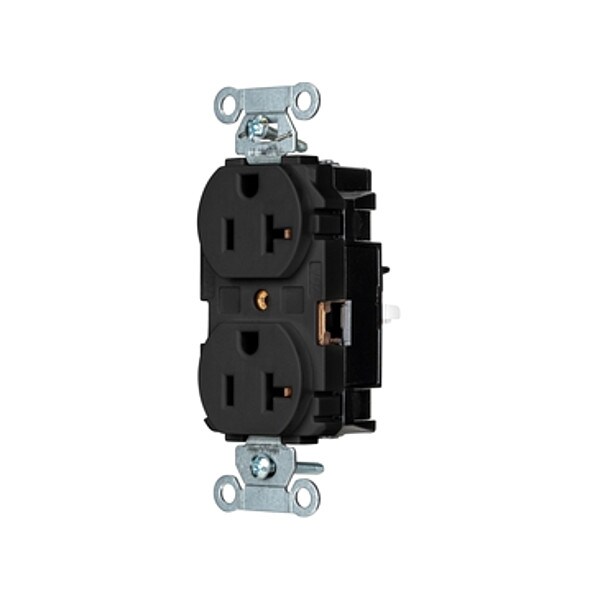

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

The HUBBELL Duplex Straight Blade Receptacle is a grounded electrical outlet rated for use in indoor, dry locations. It features the EdgeConnectTM screwless termination system that enables wire installation by inserting the wire and pressing down the plunger. This duplex receptacle supports back wiring with push-in connections and accommodates 2 outlets within a single gang configuration.

Key Features of the HUBBELL Duplex Straight Blade Receptacle:

• Current Rating: Rated for 20 A at 125V AC


• NEMA Configuration: 5-20R duplex type with polarized design


• Wire Size Compatibility: Accepts wire sizes from 14 AWG to 10 AWG


• Termination Method: Back-wired, push-in connection using spring termination intended to maintain connection integrity


• Contact Material: Copper alloy contacts with triple and double wipe points


• Tamper Resistant: Tamper resistant construction suitable for commercial settings


• Visual Indicator Lights: Equipped with a power indicator light


• Mounting Type: Surface mount; includes mounting hardware; non-flanged hub type (feed through)


• Operating Temperature Range: -40°F to 167°F maximum operating temperature


• Casing & Dimensions: Thermoplastic housing; face plate measures 2.8 in height x 1.6 in width x 1.4 in depth; mount hole center-to-center height is 3.3 in


• NEMA Enclosure Rating/IP Rating: NEMA Type 1 enclosure, IP20 rated for indoor use only


• Standards Compliance: CSA Certified (22.2 No 42 File 285), UL Listed (UL498 File No E2186), NEMA WD-6 compliant; UL94 V-2 flammability rating
