Shop HUBBELL WIRING DEVICE-KELLEMS

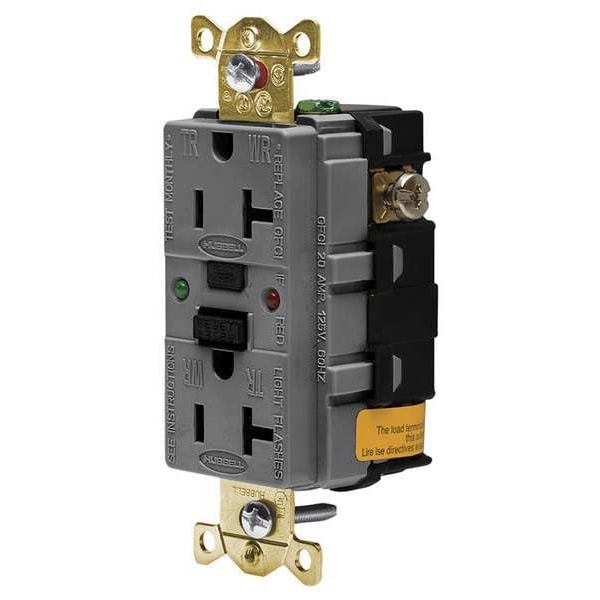

GFCI Receptacle, 20A, 125VAC, 5-20R, Gray

  • Mfr # GFSG5362GRY

  • Zoro # G5170505

product price:
$
159.99
/ea
Free Shipping & Returns

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
GFSG5362GRY
Zoro #
G5170505
UPC #
783585440972
Country of Origin
China

Dimensions

Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG
Face Plate Width
1.8 in
Face Plate Height
2.8 in
Mount Hole Center-to-Center Width
3.3 in

Details

Item
GFCI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
Grounding
Grounded
Housing Color
Gray
Housing Material
Nylon
Mounting Type
Flush
NEMA Enclosure Rating
1
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
ANSI 73, CSA Certified, FULus, NEC and CEC Certified, NEMA WD-6, UL Listed
Reset Type
Automatic
Wiring Method
Back/Side
Amps - Plugs and Receptacles
20 A
Weather Resistant - Plugs and Receptacles
Yes
Amps
20A
Surge Suppression
No
Tamper Resistant
Yes
Item - Plugs and Receptacles
Receptacle
Voltage
125VAC
Outlet Type - Plugs and Receptacles
Decorator Duplex
Application Environment
Industrial
Color
Gray
Mounting Type - Plugs and Receptacles
Flush
Self-Testing
Yes
Outlet Type
Decorator
Color - Plugs and Receptacles
Gray
Amps - Plugs and Receptacles
20
Voltage - Plugs and Receptacles
125V AC
HP
1 hp
Weather Resistant
Yes
Special Features
Includes (1) Gray Nylon Wall Plate and (1) Stainless Steel Wall Plate
Power Indicator
Yes
Wiring Method - Plugs and Receptacles
Back and Side
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
NEMA Configuration
5-20
Receptacle Type
Duplex
Number of Wall Plates Included
1
Features
Self Test
Includes Mounting Hardware
Yes
Hub Type
Feed Through
Mount Type
Flush
Includes
(1) Matching Nylon, (1) Stainless Wall Plate, Mounting Hardware
Market
Industrial
Number of Gangs
1
Resistance Properties
Impact Resistant, Tamper Resistant, Weather Resistant
Minimum Operating Temperature
-31 Degrees F
Shrouded
No
Horsepower Rating
1 hp
Flange Type
Non-Flanged
Maximum Operating Temperature
150.8 Degrees F
Wall Plate Material
Stainless Steel
UL 94 Flammability Rating
V-0
AFCI
No
Wire Connection Type
Screw Terminals
Surge Protection
No
Grade
Federal Specification
Voltage Rating
125V AC
Self Testing
Yes
Contact Material
Nickel-Plated Brass
Terminal Accommodations
#14 -10 AWG stranded or solid copper conductors only.
Trip Time
0.025 seconds
Max Humidity
0.95
Frequency
60Hz
Codes and Standards
Meets UL 943 Class A GFCIs and UL 498 for Receptacles. Complies to NEC, CEC & OSHA. UL File E-41978, CSA File LR-24886
Trip Level
4-6 mA
Receptacle Version
Self Test Tamper Resistant
GFCI Product Type
receptacles
Max Interrupting Capacity
10,000 Amps
Amperage
20A
Operating Temp
Deg F -30 to 150 (Deg C -30 to 66)
Amperage Range
15A/20A, 20 Amps Feed Thru
Receptacle Grade
Industrial Grade
Voltage Range
120V AC +10% -15%
Number of Outlets
2
IP Rating
Not Rated

Description

The HUBBELL GFCI Receptacle is a 20A, 125VAC duplex outlet rated for use in environments where ground fault circuit interruption is specified. It features AUTOGUARD® self-test technology with periodic monitoring of the receptacle’s protection function that continuously monitors the receptacle’s protection capability and automatically disconnects power if critical components are compromised. The device includes visual indicators for power status, trip condition, ground fault detection, and end-of-life alerts. The device includes a feature that prevents power delivery to the face of the receptacle under reverse wiring conditions.


Key Features of the HUBBELL GFCI Receptacle:

  • Amperage/Voltage: Rated for 20A at 125VAC with feed-through capability

  • NEMA Configuration: 5-20R decorator duplex outlet

  • Self-Test Function: Performs periodic monitoring; features include tamper-resistant and weather-resistant construction

  • Construction: Nylon housing; nickel-plated brass contacts; stainless steel screws

  • Mounting Type: Flush mount with included gray nylon and stainless steel wall plates plus mounting hardware

  • Circuit Protection: Trip threshold: 4-6 mA, response time up to 0.025 seconds; automatic reset

  • Wire Accommodation: Accepts #14–10 AWG stranded or solid copper conductors via back or side screw terminals

  • Operating Range: -31°F to 150.8°F maximum temperature range; suitable for industrial environments

  • Standards Compliance: Meets UL 943 Class A GFCIs, UL 498, ANSI 73, CSA Certified, NEC & CEC requirements; NEMA WD-6 listed
