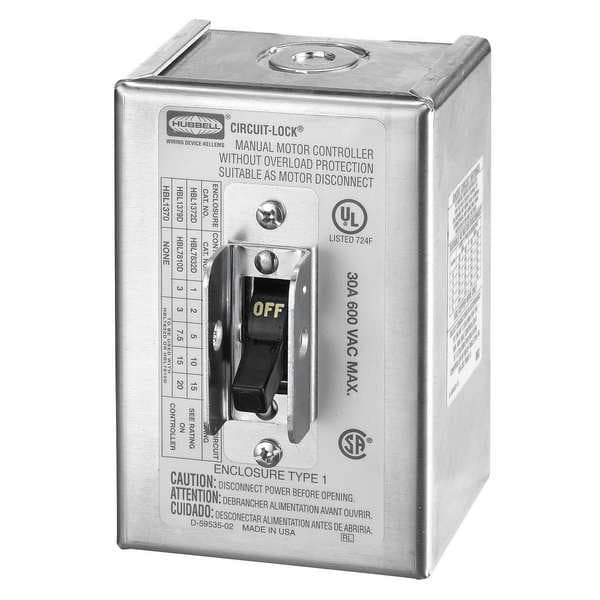

Electrical Enclosures, 3.15 in H, 4.52 in D, 3.2 in W, 1
Mfr # HBL1370
Zoro # G1054952
CAD Available
product price: $39.45
/eaKey Features
CAD Drawing
Nominal Width
3.2 in
Nominal Height
3.15 in
Nominal Depth
4.52 in
NEMA Enclosure Rating
1
Metallic / Non-Metallic
Metallic
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
HBL1370
Zoro #
G1054952
UPC #
783585016986
Country of Origin
United States
Dimensions
Nominal Width
3.2 in
Nominal Height
3.15 in
Nominal Depth
4.52 in
Details
CAD Available
Yes
Item
Electrical Enclosures
NEMA Enclosure Rating
1
Metallic / Non-Metallic
Metallic
For Use With
Manual Motor Starters
Series
Non-Fused
Includes
Metallic NEMA 1 Enclosure
Standards
UL Listed
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Environmental Conditions
Indoor Only
Application
For 30A Switches
Current AC
40 A
Operator
Toggle Switch
Description
Switch Enclosure, Accessory Type Switch Enclosure, Operator Toggle Switch, Current AC 40 A, Includes Metallic NEMA 1 Enclosure, NEMA Size 1, Number of Poles Not Applicable, Maximum Voltage Rating Not Applicable, Overall Height 3.15 in, Overall Width 3.2 in, Overall Depth 4.52 in, Standards UL Listed
