  11. European Cord Connector Pg36 H

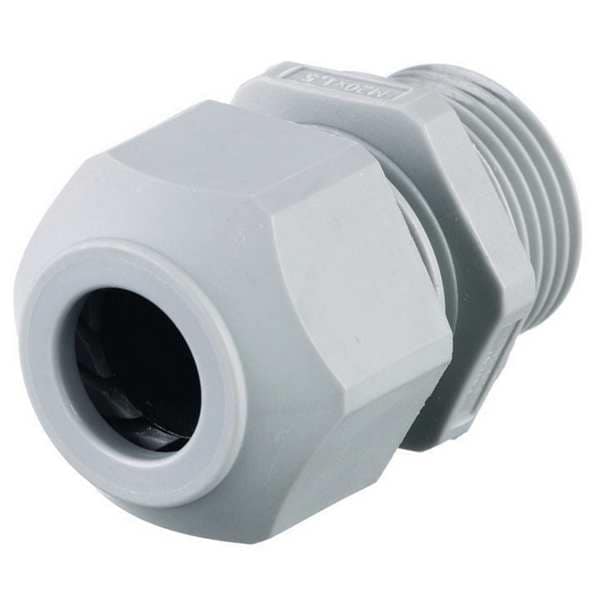

Hubbell Wiring Device-Kellems European Cord Connector Pg36 H SECP36GA - main

European Cord Connector Pg36 H

  • Mfr # SECP36GA

  • Zoro # G3128846

product price: $20.35
/ea

Key Features

Hub Size
PG36
Material
Non-Metallic
Color
gray
Standards
UL Listed
Box Connection
PG36, Male
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SECP36GA
Zoro #
G3128846
UPC #
783585018416
Country of Origin
United States

Dimensions

Hub Size
PG36
Cord Dia. Range
0.88-1.3 in (22.2-32.0 mm)
Thread Size
PG36
Dimension A
1.811" (46)
Dimension E
2.283" (58)
Dimension B
1.181" (30)
Cord Diameter Range
.88"- 1.30" (22.2-32.0)
Dimension C
.512 (13)
Dimension G
1.85" (47)
Display Size
PG36
Dimension D
1.85" (47)
Dimension F
2.087" (53)

Details

Item
Low Profile Cord Connectors
Material
Non-Metallic
Color
gray
Standards
UL Listed
Box Connection
PG36, Male
Minimum Operating Temperature
-22 Degrees F
Body Color
Gray
For Maximum Cable OD
1.3 in
For Minimum Cable OD
0.88 in
Maximum Operating Temperature
225 Degrees F
Body Material
Nylon
IP Rating
IP66
Gripper Material
Nylon
Thread Type
PG
Grommet Color Code
No Code
Protection Class
IP68
Sealing Grommet Material
Neoprene
Operating temperature
-30°C to 100°C
OEM Brand Name
Hubbell Wiring Device-Kellems
Conductor Range
0.88-1.3 in (22.2-32.0 mm)
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
UPC
783585000000
Temp. Rating
Minimum -22 Deg F to 225 Deg F (-30 Deg C to 107 Deg C)
Application
Straight Male Connector
Temperature Rating
Minimum -22 Deg F to 225 Deg F (-30 Deg C to 107 Deg C)
Material/Style
Nylon Low Profile
Item Type
Low Profile Cord Connectors
Standard
UL Listed
Material - Mounting Hardware
Locknut or Tapped Opening
Carton Quantity
50
Number Of Conductors
Single
Mounting Hardware Material
Locknut or Tapped Opening
Product Type
Cord Connectors
Series
Low Profile PG
Industry Standard(s)
UL Listed
Nema Rating
IP66
Brand
Hubbell Wiring Device-Kellems
Certifications
UL 514B, CSA C22.2 No. 18
Environmental Rating
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Type
Connector
Cord Connector Body Style
Straight Male
Flammability
UL 94 V-0

Description

Low Profile Cord Connectors, Cord Dia. Range 0.88 in to 1.3 in, Box Connection PG36, Male, Standards UL Listed
