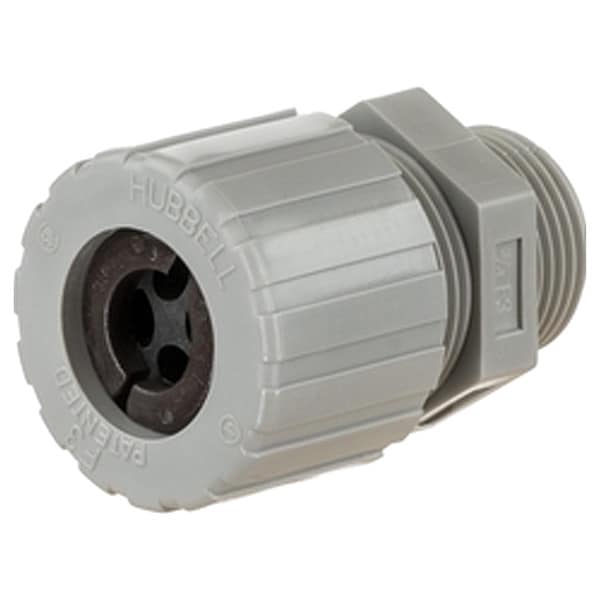

Hubbell Wiring Device-Kellems Straight Multi-Cable Grip, 1-5/8 in L MHC2032CR - main

Straight Multi-Cable Grip, 1-5/8 in L

  • Mfr # MHC2032CR

  • Zoro # G310473294

product price: $14.29
/ea

Key Features

For Use With
Cord
Hub Size
3/4 in
Standards
UL Listed
NEMA Rating
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
Number of Cords
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MHC2032CR
Zoro #
G310473294
UPC #
783585708539
Country of Origin
United States

Dimensions

Hub Size
3/4 in
Cord Dia. Range
0.23 in to 0.29 in
Form Size
F3
Length - External Strain Relief
2 3/16 in
Length - Box to End of Connector
1 5/8 in
Overall Length
2 3/16 in
Compatible Conduit Trade Size
3/4 in

Details

Item
Straight Multi-Cable Grip
For Use With
Cord
Standards
UL Listed
NEMA Rating
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
Number of Cords
4
Minimum Operating Temperature
-30 Degrees F
Environmental Rating
Hazardous Location
Insulated
No
Resistance Properties
Corrosion Resistant, UV Resistant
Material - External Strain Relief
Nylon
Hazardous Location Rating
Class I Division 2, Class II Division 1, Class II Division 2, Class Ill Division 1
Strain Relief Type
No External Strain Relief
For Minimum Cable OD
0.23 in
Body Material
Nylon
For Maximum Cable OD
0.29 in
Box Connection
3/4 in MNPT
Body Color
Black
Connection Orientation
Straight
Maximum Operating Temperature
225 Degrees F
Liquid Tight
Yes
Collar Material
Nylon
Thread Type
NPT
Grommet Color Code
No Code
Grommet Material
Neoprene
IP Rating
IP 66
Bushing Material
Neoprene
Indoor/Outdoor Usage
Indoor/Outdoor
Gripper Material
Nylon
Hazardous Location Rating - Europe
Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2
Thread Gender
Male

Description

Straight Multi-Cable Grip, Cord Dia. Range 0.23 in to 0.29 in, Box Connection 3/4 in MNPT, External Strain Relief Material Nylon, Number of Cords 4, Strain Relief Type No External Strain Relief, External Strain Relief Length 2 3/16 in, Length - Box to End of Connector 1 5/8 in, Insulated No, Standards UL Listed, Hazardous Location Rating Class I Division 2, Class II Division 1, Class II Division 2, Class Ill Division 1
