Shop HUBBELL WIRING DEVICE-KELLEMS

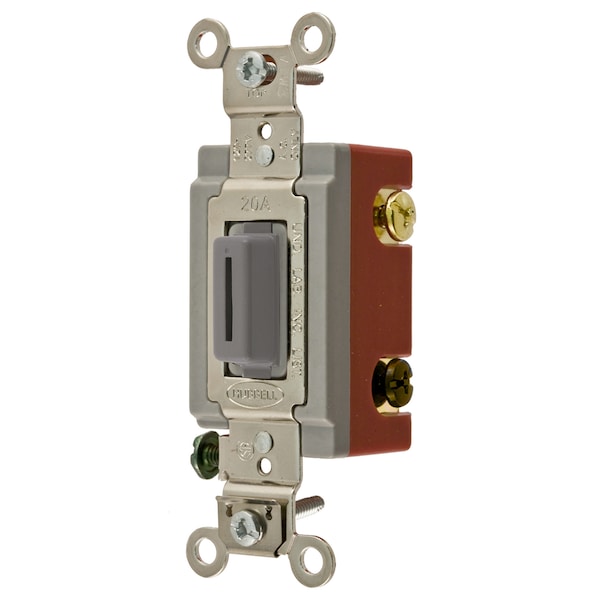

Extra Heavy Duty Industrial Grade, Locking Toggle Switches, General Purpose AC, Three Way, 20A 120/277V AC, Back and Side Wired Key Guide

  • Mfr # HBL1223LG

  • Zoro # G100701415

product price:
$
49.35
/ea

Key Features

Color
Gray
Style
Three Way
Width
1.31 in
Length
4.06 in
Type
Locking
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL1223LG
Zoro #
G100701415
UPC #
783585188638
Country of Origin
China

Dimensions

Width
1.31 in
Length
4.06 in
Height
1.13 in
Dimensions
4.06 in x 1.31 in x 1.13 in
Wire Size
#14 AWG to #10 AWG

Details

Color
Gray
Style
Three Way
Type
Locking
Temp. Rise
30°C maximum at rated current
Series
Extra Heavy Duty
Number Of Poles
Single Pole
Application
Back and Side Wired
Carton Quantity
10
Connectivity
Back and Side Wired
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Action
SPDT
Current Rating
20 A
Amperage
20 A
Voltage Rating
120-277 VAC
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Contacts
Silver Alloy
Top Material
Thermoset
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Terminal Screws
Brass
Key Guide
Metallic, Black
Flammability
UL 94V-2
Ground Screw
Brass (Green)
Max. Continuous Current
20A
Temperature Rise
30°C maximum at rated current
Max. Working Voltage
277V AC
Base Material
Thermoset, Red
Overload
Minimum 4.8 times rated current for 100 cycles
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Industry Standard(s)
UL Listed
Voltage Rating Description
120-277 VAC
Current / Amperage Rating
20 A
Amperage Rating
20 A
Temperature Rise - Max.
30°C maximum at rated current

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls, LockingIndustrial Grade, Toggle Switches, General Purpose AC, Locking ThreeWay, 20A 120/277V AC, Back and Side Wired, Gray Key Guide, Packed withKey
