  11. Flanged Locking Inlet, 15 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals, Black

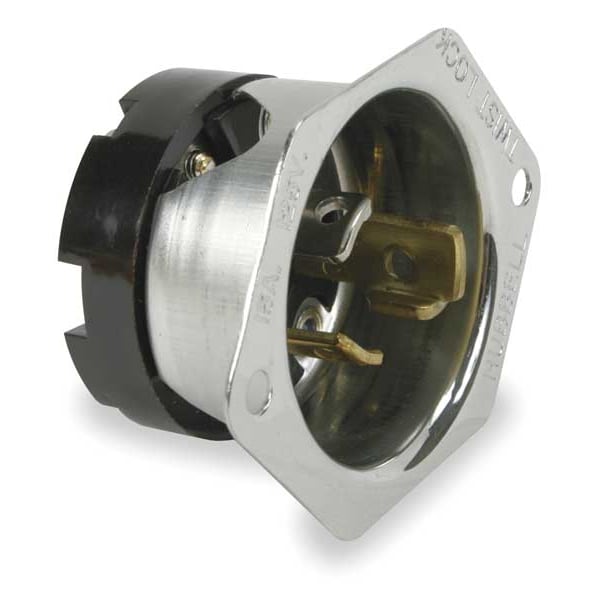

Hubbell Wiring Device-Kellems Flanged Locking Inlet, 15 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals, Black HBL4716 - main

Flanged Locking Inlet, 15 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals, Black

  • Mfr # HBL4716

  • Zoro # G2491833

product price: $36.15
/ea

Key Features

Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL4716
Zoro #
G2491833
UPC #
783585236773
Country of Origin
United States

Dimensions

Maximum Wire Size
10 AWG
Overall Depth
1.09 in
Minimum Wire Size
18 AWG
Face Plate Height
1.75 in
Face Plate Width
0.03 in
Face Diameter
1.5 in
Wire Size
15A #14 AWG
Length
2.31 in
Height
1.09 in
Dimensions
2.31 in x 1.75 in x 1.09 in
Width
1.75 in

Details

Item
Locking Plug
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Cover Type
No Cover
IP Rating
IP20
NEMA Enclosure Rating
12, 4X
Standards
CSA C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Heat Resistant, Moisture Resistant
Flange Type
Flanged
Mounting Type
Flush Mount
Wiring Style
Standard
Special Features
With Stainless Steel Plate
Grade
General Use
Material
Stainless Steel
For Location
Indoor
Includes Mounting Hardware
Yes
Blade Material
Brass
For Environment
Dry
Maximum Operating Temperature
167 Degrees F
Number of Blades
3
Horsepower Rating
1/2 hp
Market
Industrial
Includes
Mounting Screws
Housing Material
Stainless Steel
NEMA Plug Configuration
L5-15P
Minimum Operating Temperature
-40 Degrees F
Flange Material
Stainless Steel
Terminal Designations
Terminals identified in accordance with UL 498
Lock Type
Twist-lock
Flammability
HB or better per UL94/CSA 22.2 No.0.17
Material - Mounting Hardware
Screw Mounting
Application
Heavy Duty Industrial
Dielectric Strength
Withstands 2,000V minimum
OEM Brand Name
Hubbell Wiring Device-Kellems
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Insulation
Insulated Body
Amperage Rating
15 A
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18 AWG - #10 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
NEMA Rating
12, 4X
NEMA Configuration
L5-15
Amps
15
NEMA Receptacle Configuration
L5-15P

Description

Flanged Locking Inlet, Current Rating 15 A, Flange Material Stainless Steel, Housing Color Black, IP Rating IP20, Mount Type Flush, NEMA Enclosure Rating 12, 4X, NEMA Plug Configuration L5-15P, Number of Blades 3, Number of Poles 2, Phase Single, Resistance Properties Heat Resistant, Moisture Resistant, Voltage Rating 125V AC, Wiring Style Standard, Face Diameter 1.5 in, Flange Type Flanged, Grounding Grounded, Horsepower Rating 1/2 hp, Housing Material Stainless Steel
