Shop HUBBELL WIRING DEVICE-KELLEMS

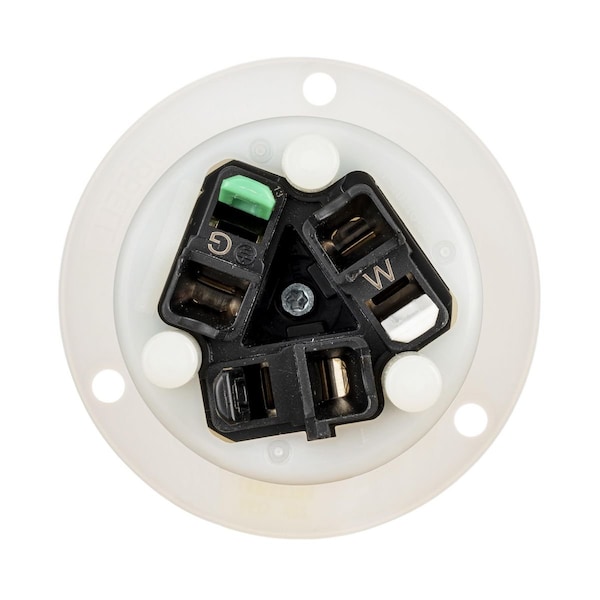

Locking Receptacle, 30 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Spring Clamp Terminals, White

  • Mfr # HBL2615ST
  • Zoro # G506171348
product price:
$
51.98
/ea

Key Features

NEMA Receptacle Configuration
L5-30P
Current Rating
30 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL2615ST
Zoro #
G506171348
UPC #
783585719023
Country of Origin
China

Dimensions

Flange Diameter
2.5 in
Maximum Wire Size
4 AWG
Face Plate Width
0.07 in
Face Diameter
2.04 in
Overall Depth
2.63 in
Minimum Wire Size
14 AWG

Details

Item
Locking Plug
NEMA Receptacle Configuration
L5-30P
Current Rating
30 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Spring Clamp Terminals
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Cover Type
No Cover
Flange Type
Flanged
Standards
CSA C22.2 No. 42, Federal Specification W-C-596, UL 498
Grade
Federal Specification
IP Rating
IP20
Market
Industrial
Horsepower Rating
2 hp
NEMA Plug Configuration
L5-30P
Housing Material
Nylon
Housing Material Finish
Natural
Includes
14 AWG - 8 AWG Copper Wire
Maximum Operating Temperature
167 Degrees F
Minimum Operating Temperature
-40 Degrees F
Number of Blades
3
For Location
Indoor
Shrouded
No
NEMA Configuration
L5-30
Blade Material
Copper Alloy
UL 94 Flammability Rating
HB

Description

• Faster termination time
• No need for torque wrench
• Strong steel spring eliminates strand relaxation
• Funnel shaped wire entry for ease of termination.
• Backwired termination for ease of installation
