  6. Flanged Locking Inlet, 15 A, 250V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals

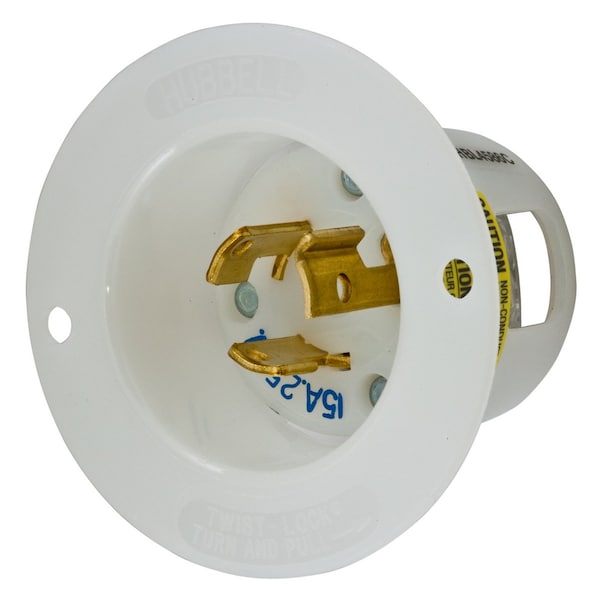

Hubbell Wiring Device-Kellems Flanged Locking Inlet, 15 A, 250V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals HBL4586C - main

Flanged Locking Inlet, 15 A, 250V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals

  • Mfr # HBL4586C

  • Zoro # G000701348

product price:  $27.25
/ea

Key Features

NEMA Receptacle Configuration
L6-15P
Current Rating
15 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL4586C
Zoro #
G000701348
UPC #
783585170206
Country of Origin
United States

Dimensions

Wire Size
#18 AWG - #10 AWG solid or stranded copper wire only.
Width
2.56 in
Height
1.72 in
Length
2.56 in
Dimensions
2.56 in x 2.56 in x 1.72 in

Details

Item
Locking Plug
NEMA Receptacle Configuration
L6-15P
Current Rating
15 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Black, White
Mount Type
Flush
Cover Type
No Cover
Flange Type
Flanged
Standards
Certified for current interrupting at full rated current, UL/CSA
Resistance Properties
Impact Resistant, Moisture Resistant
Flange Material
Natural White Nylon
Material
zinc plated
Special Features
Molded In or Stamped On
Wiring Style
Insulgrip
IP Rating
IP20
Application
Extra Heavy Duty Industrial
Lock Type
Twist-lock
Terminal Designations
Terminals identified in accordance with UL 498
Flammability
UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
Material - Mounting Hardware
Screw Mounting
Dielectric Strength
Withstands 2,000V minimum
Insulation
Insulated Body
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Flanged Inlet, 15A 250V, 2-Pole 3-Wire Grounding, L6-15P, ScrewTerminal, White
