  11. Flanged Locking Inlet, 20 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount, Screw Terminals, White

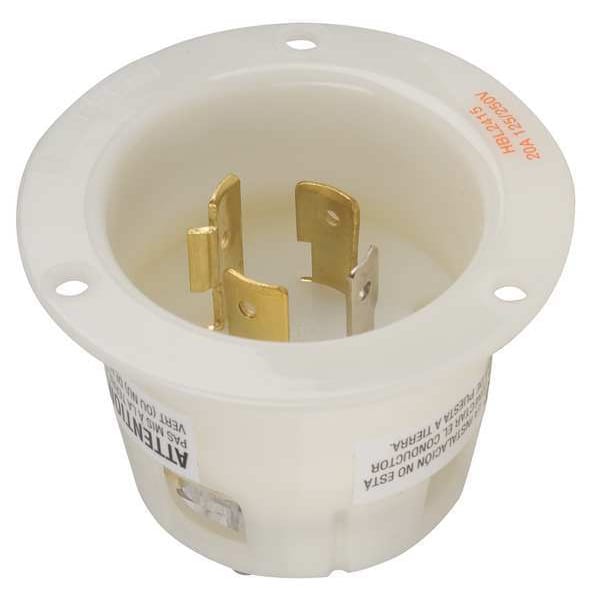

Hubbell Wiring Device-Kellems Flanged Locking Inlet, 20 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount, Screw Terminals, White HBL2415 - main

Flanged Locking Inlet, 20 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount, Screw Terminals, White

  • Mfr # HBL2415

  • Zoro # G2955251

product price: $39.15
/ea

Key Features

Current Rating
20 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2415
Zoro #
G2955251
UPC #
783585038179
Country of Origin
United States

Dimensions

Minimum Wire Size
16 AWG
Face Diameter
2.23 in
Overall Depth
2.27 in
Flange Diameter
3.06 in
Maximum Wire Size
8 AWG
Face Plate Width
0.09 in
Wire Size
#12 AWG; #16 AWG - #8 AWG solid or stranded copper wire only.
Height
2.27 in
Length
3.06 in
Dimensions
3.06 in x 3.06 in x 2.27 in
Width
3.06 in

Details

Item
Flanged Locking Inlet
Current Rating
20 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Cover Type
No Cover
IP Rating
IP44
NEMA Enclosure Rating
12, 4, 4X
Standards
CSA C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Moisture Resistant
Flange Type
Flanged
Material
Thermoplastic Elastomer
Mounting Type
Flush Mount
Grade
General Use
Boot Code
E
Wiring Style
Standard
Special Features
With Cover
Features
Accepts Slotted, Phillips, and Robertson Head Drivers
Includes Mounting Hardware
Yes
Minimum Operating Temperature
-40 Degrees F
Flange Material
Steel
Housing Material
Nylon
For Environment
Dry
Includes
Mounting Screws
Horsepower Rating
2 hp
Maximum Operating Temperature
167 Degrees F
Number of Blades
4
NEMA Plug Configuration
L14-20P
Blade Material
Brass
Market
Industrial
Connection Orientation
Straight
For Location
Indoor
Flammability
HB or better per UL94/CSA 22.2 No.0.17
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Lock Type
Twist-lock
Dielectric Strength
Withstands 2,000V minimum
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Material - Mounting Hardware
Screw Mounting
Application
Extra Heavy Duty Industrial
OEM Brand Name
Hubbell Wiring Device-Kellems
Insulation
Insulated Body
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Cord Grip Accomodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amperage Rating
20 A
Amps
20
NEMA Configuration
L14-20
NEMA Rating
12, 4, 4X
NEMA Receptacle Configuration
L14-20R

Description

Flanged Locking Inlet, Current Rating 20 A, Flange Material Steel, Housing Color White, IP Rating IP44, Mount Type Flush, NEMA Enclosure Rating 12, 4, 4X, NEMA Plug Configuration L14-20P, Number of Blades 4, Number of Poles 3, Phase Single, Resistance Properties Moisture Resistant, Voltage Rating 125/250V AC, Wiring Style Standard, Face Diameter 2.23 in, Flange Diameter 3.06 in, Flange Type Flanged, Grounding Grounded, Horsepower Rating 2 hp, Housing Material Nylon
