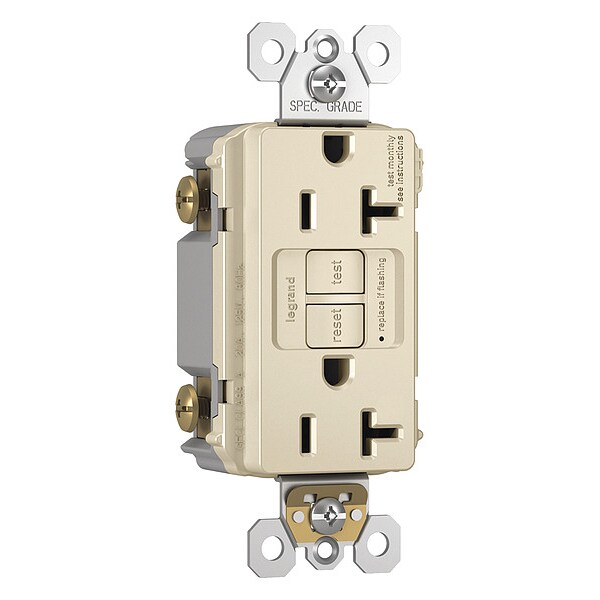

NEMA 20A 4-3/16" H x 1-3/4" W x 1-1/8" D Power Inlet

  • Mfr # 2097TRLA

  • Zoro # G8037173

product price:
$
28.59
/ea

Key Features

Current Rating
20 A
GFCI
Yes
Housing Material
Plastic
Mounting Type
Box
NEMA Receptacle Configuration
5-20R
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2097TRLA
Zoro #
G8037173
UPC #
-
Country of Origin
China

Dimensions

Height
4-3/16"
Depth
1-1/8"
Width
1-3/4"
Face Plate Height
2.7 in
Face Plate Width
1.7 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Overall Depth
1 in
Mount Hole Center-to-Center Height
3.3 in
Mount Hole Center-to-Center Width
0.9 in

Details

Item
Power Inlet
Current Rating
20 A
GFCI
Yes
Housing Color
Light Almond
Housing Material
Plastic
Mounting Type
Box
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Standards
cULus Listed, FSUL, UL Listed
Voltage Rating
125V AC
Reset Type
Automatic
Amps
20
Number of Outlets
2
Voltage
125VAC
Receptacle Type
Duplex
Indoor/Outdoor
Indoor
Color
Light Almond
Includes Mounting Hardware
Yes
Grade
Federal Specification
Maximum Operating Temperature
150.8 Degrees F
IEC Configuration
309
Wire Connection Type
Screw Terminals
Compatible with Series
Radiant(R)
UL 94 Flammability Rating
V-2
Wiring Method
Back/Side
Self Testing
Yes
Resistance Properties
Tamper Resistant
For Location
Outdoor
Contact Material
Brass
Market
Commercial, Industrial, Residential
Maximum Surge Current
6 mA
Minimum Operating Temperature
-31 Degrees F
Number of Gangs
1
Number of Wall Plates Included
0
Hub Type
Feed Through
For Environment
Institutional
Frequency Rating
60 Hz
Environmental Conditions
95% Humidity, UL 94 V2
Number of Receptacles
2
Amperage
20.0 A
Standard
cULus, UL Listed, FSUL
NEMA Rating
20A
Application Sector
Residential/Commercial
Outlet Type
Tamper-Resistant,Self-Test,GFCI,Indoor
Interrupt Rating
4.0 A
NEMA Configuration Code
5-20R
Special Features
Spec Grade
Trip Range
4 to 6 mA
Finish
Matte
IP Rating
Not Rated
Grounding
Grounded
Surge Protection
No
Flange Type
Non-Flanged
Phase
Single
Mount Type
Flush
Polarized
No
Series
Radiant(R)
Shrouded
No
NEMA Enclosure Rating
5
AFCI
No
Cover Type
No Cover

Description

Power Inlet, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Light Almond, Housing Material Plastic, Mount Type Flush, NEMA Enclosure Rating 5, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized No, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards cULus Listed, FSUL, UL Listed, Voltage Rating 125V AC
