  11. Flanged Locking Inlet, 30 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals, White

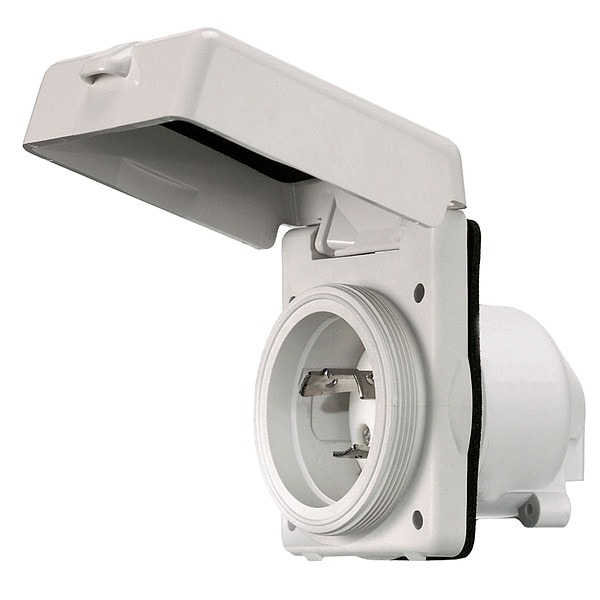

Hubbell Wiring Device-Kellems Flanged Locking Inlet, 30 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals, White HBL303NM - main

Flanged Locking Inlet, 30 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals, White

  • Mfr # HBL303NM

  • Zoro # G2922062

product price: $93.76
/ea
Free Shipping & Returns

Key Features

Current Rating
30 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL303NM
Zoro #
G2922062
UPC #
783585040530
Country of Origin
United States

Dimensions

Maximum Wire Size
10 AWG
Minimum Wire Size
12 AWG
Wire Size
#12 AWG to #10 AWG

Details

Item
Flanged Locking Inlet
Current Rating
30 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Cover Type
Flip-Up Cover
IP Rating
IP56
NEMA Enclosure Rating
12, 4X
Standards
UL Listed
Resistance Properties
Corrosion Resistant, Moisture Resistant, Watertight
Flange Type
Flanged
Material
Thermoplastic/Composite
Grade
Marine
Special Features
With Cover
Wiring Style
Standard
Mounting Type
Flush Mount
NEMA Plug Configuration
L5-30P
Maximum Operating Temperature
167 Degrees F
Minimum Operating Temperature
-40 Degrees F
Housing Material
Thermoplastic
Number of Blades
3
Includes Mounting Hardware
Yes
Blade Material
Nickel-Plated Brass
Maximum Surge Current
30 A
Lock Type
Shore Power Inlets
Application
Marine Wiring Devices
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Wattage
3750
Dielectric Strength
Withstands 3000V Minimum in
Amperage Rating
30 A
Performance
Environmental - Moisture Resistance - IP56 Suitability
Insulation
Insulated Body
OEM Brand Name
Hubbell Wiring Device-Kellems
Material - Mounting Hardware
Screw Mounting
Amps
30
NEMA Configuration
L5-30
NEMA Rating
12, 4X
NEMA Receptacle Configuration
L5-30R

Description

The HUBBELL 30A Marine Flanged Locking Inlet is a hull mount, single-phase inlet intended for use in marine wiring applications. It features a flanged design with a thermoplastic housing with IP56 rating and corrosion resistance, rated for use in specified environmental conditions. The inlet supports 30A at 125V AC and accommodates wire sizes from #12 AWG to #10 AWG using screw terminals.


Key Features of the HUBBELL 30A Marine Flanged Locking Inlet:

  • Amperage/Voltage: Rated for 30 A, 125V AC single-phase power

  • NEMA Configuration: L5-30P plug compatibility; L5-30R receptacle configuration

  • Material Construction: Thermoplastic/composite housing with nickel-plated brass blades

  • Environmental Resistance: IP56 ingress protection, corrosion resistance

  • Rated operating temperature range: -40°C to +75°C

  • Circuit Details: Two poles, three wires; includes grounding terminal

  • Mounting Type: Flush mount with included screw mounting hardware

  • Cover Feature: Self-closing cover

  • Standards Compliance: UL Listed; meets industry standards for marine-grade devices
