  11. Flanged Locking Inlet, 30 A, 277/480V AC, Three Phase, 4 Pole, Flush Mount, Screw Terminals, White

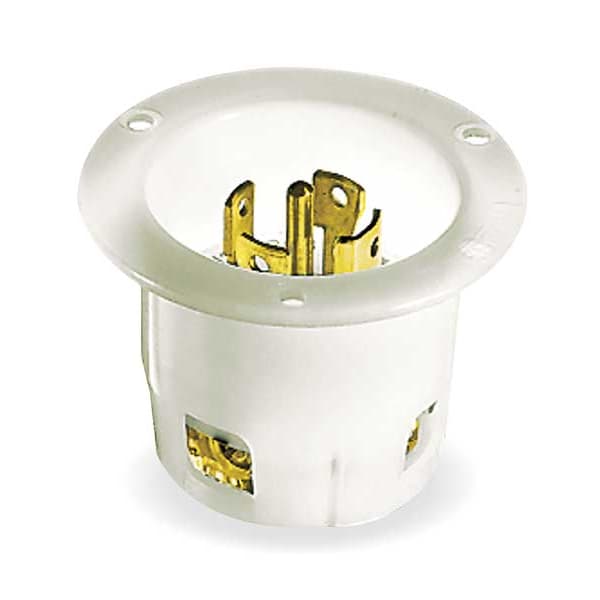

Hubbell Wiring Device-Kellems Flanged Locking Inlet, 30 A, 277/480V AC, Three Phase, 4 Pole, Flush Mount, Screw Terminals, White HBL2825 - main

Flanged Locking Inlet, 30 A, 277/480V AC, Three Phase, 4 Pole, Flush Mount, Screw Terminals, White

  • Mfr # HBL2825

  • Zoro # G2059206

product price: $69.45
/ea

Key Features

Current Rating
30 A
Voltage Rating
277/480V AC
Phase
Three
Number of Poles
4
Number of Wires
5
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2825
Zoro #
G2059206
UPC #
783585039718
Country of Origin
United States

Dimensions

Flange Diameter
3.06 in
Minimum Wire Size
16 AWG
Face Plate Width
0.09 in
Maximum Wire Size
8 AWG
Face Diameter
2.23 in
Overall Depth
2.27 in
Wire Size
#10 AWG
Width
3.06 in
Dimensions
3.06 in x 3.06 in x 2.27 in
Height
2.27 in
Length
3.06 in

Details

Item
Flanged Locking Inlet
Current Rating
30 A
Voltage Rating
277/480V AC
Phase
Three
Number of Poles
4
Number of Wires
5
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Cover Type
No Cover
IP Rating
IP20
NEMA Enclosure Rating
12, 4X
Standards
CSA C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Impact Resistant, Moisture Resistant
Flange Type
Flanged
Grade
General Use
Boot Code
E
Mounting Type
Flush Mount
Material
Impact Modified PBT
Special Features
With Cover
Wiring Style
Standard
Market
Industrial
Connection Orientation
Straight
Flange Material
Nylon
Number of Blades
5
Features
Accepts Slotted, Phillips, and Robertson Head Drivers
Includes
Mounting Screws
For Environment
Dry
Blade Material
Brass
For Location
Indoor
Maximum Operating Temperature
167 Degrees F
Minimum Operating Temperature
-40 Degrees F
Horsepower Rating
10 hp
NEMA Plug Configuration
L22-30P
Housing Material
Nylon
Includes Mounting Hardware
Yes
Lock Type
Twist-lock
Flammability
HB or better per UL94/CSA 22.2 No.0.17
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Material - Mounting Hardware
Screw Mounting
Amperage Rating
30 A
Dielectric Strength
Withstands 2,000V minimum
Insulation
Insulated Body
Application
Extra Heavy Duty Industrial
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C. Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 500
OEM Brand Name
Hubbell Wiring Device-Kellems
NEMA Rating
12, 4X
NEMA Configuration
L22-30
Amps
30
NEMA Receptacle Configuration
L22-30R

Description

The HUBBELL 30A Flanged Twist-Lock Inlet (L22-30P WT) is a flanged locking inlet suitable for use in industrial environments. It features a twist-lock mechanism with a 4-pole, 5-wire configuration and is rated for 277/480V AC three-phase power at up to 30 amps. The device is constructed from thermoplastic materials and includes backwired terminations for straightforward installation.


Key Features of the HUBBELL 30A Flanged Twist-Lock Inlet:

  • Amperage/Voltage: Rated for 30 A, 277/480V AC, three-phase use

  • NEMA Configuration: L22-30P plug pattern; compatible with L22-30R receptacles

  • Construction: PBT housing and nylon flange; insulated body

  • Terminals: Accepts #8–#16 AWG solid or stranded copper wire; screw terminals accept slotted, Phillips, or Robertson drivers

  • Mounting Type: Flush mount design with included mounting screws/hardware

  • Environmental Suitability: Intended for indoor dry locations; IP20 rating

  • Performance Ratings: Dielectric strength rated at minimum 2,000V; certified current interrupting

  • Standards Compliance: Certified to CSA C22.2 No.42, UL 498 listed, Federal Specification W-C-596 compliant
