  11. Flanged Locking Inlet, L18-30R, 30 A, 120/208V AC, Three Phase, 4 Pole, Flush Mount, White

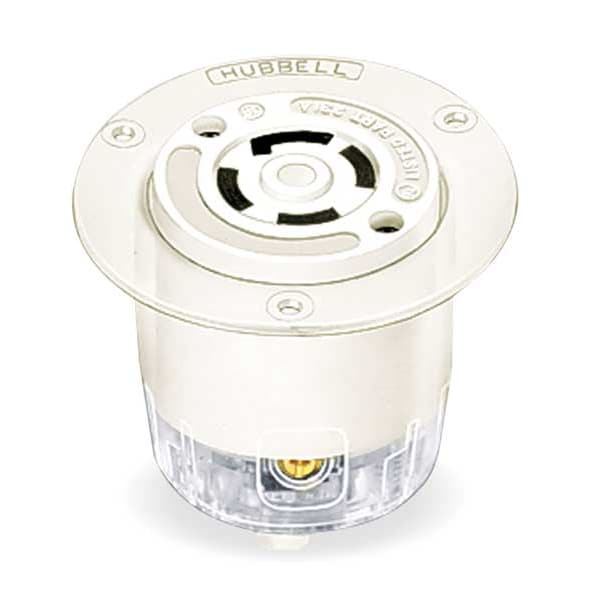

Hubbell Wiring Device-Kellems Flanged Locking Inlet, L18-30R, 30 A, 120/208V AC, Three Phase, 4 Pole, Flush Mount, White HBL2756 - main

Flanged Locking Inlet, L18-30R, 30 A, 120/208V AC, Three Phase, 4 Pole, Flush Mount, White

  • Mfr # HBL2756

  • Zoro # G3248341

product price: $77.99
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L18-30R
Current Rating
30 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2756
Zoro #
G3248341
UPC #
783585039466
Country of Origin
United States

Dimensions

Minimum Wire Size
16 AWG
Maximum Wire Size
8 AWG
Wire Size
#16 AWG - #8 AWG solid or stranded copper wire only.
Height
2.27 in
Length
3.06 in
Width
3.06 in
Dimensions
3.06 in x 3.06 in x 2.27 in

Details

Item
Flanged Locking Inlet
NEMA Receptacle Configuration
L18-30R
Current Rating
30 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
Number of Wires
4
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Non-Grounded
Housing Color
White
Mount Type
Flush
Cover Type
No Cover
IP Rating
IP20
NEMA Enclosure Rating
12, 4X
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Impact Resistant, Moisture Resistant
Flange Type
Flanged
Special Features
With Cover
Material
Nylon
Grade
Industrial
Wiring Style
Standard
Mounting Type
Flush Mount
Includes
Mounting Screws
Number of Gangs
1
Connection Orientation
Straight
Polarized
Yes
Minimum Operating Temperature
-40 Degrees F
Includes Mounting Hardware
Yes
Maximum Operating Temperature
167 Degrees F
Features
Accepts Slotted, Phillips, and Robertson Head Drivers
For Location
Indoor
Contact Material
Brass
Flange Shape
Round
For Environment
Dry
Housing Material
Nylon
Market
Industrial
Horsepower Rating
2 hp
AFCI
No
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Flammability
V2 or better per UL94/CSA 22.2 No.0.17
Flange Material
Natural White Nylon
Spring Material
Brass
Lock Type
Twist-lock
OEM Brand Name
Hubbell Wiring Device-Kellems
Material - Mounting Hardware
Screw Mounting
Amperage Rating
30 A
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Application
Insulgrip
Dielectric Strength
Withstands 2,000V minimum
Amps
30

Description

• Impact resistant thermoplastic construction
• Backwired terminations for ease of installation
• #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
• Mounting screws included
