  11. Flanged Locking Inlet, Non-NEMA, 20 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount, White

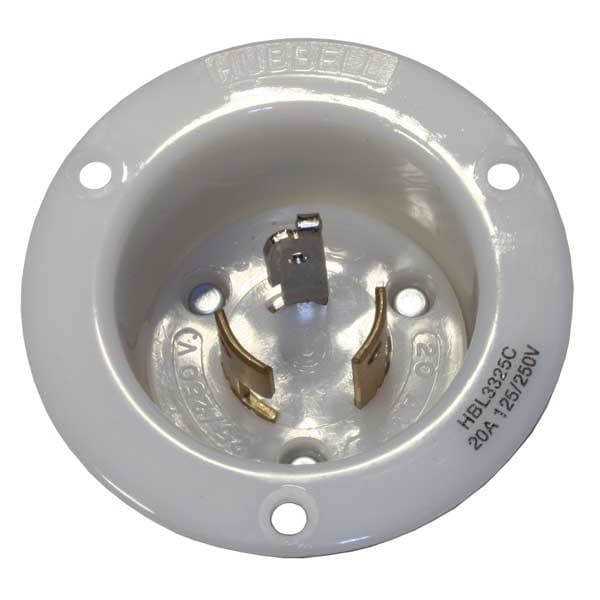

Hubbell Wiring Device-Kellems Flanged Locking Inlet, Non-NEMA, 20 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount, White HBL3325C - main

Flanged Locking Inlet, Non-NEMA, 20 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount, White

  • Mfr # HBL3325C

  • Zoro # G3038341

product price: $36.52
/ea

Key Features

NEMA Receptacle Configuration
Non-NEMA
Current Rating
20 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL3325C
Zoro #
G3038341
UPC #
783585039794
Country of Origin
United States

Dimensions

Flange Diameter
2.88 in
Face Diameter
2.05 in
Minimum Wire Size
16 AWG
Overall Depth
1.93 in
Maximum Wire Size
10 AWG
Wire Size
#12 AWG
Length
2.88 in
Height
1.93 in
Dimensions
2.88 in x 2.88 in x 1.93 in
Width
2.88 in

Details

Item
Flanged Locking Inlet
NEMA Receptacle Configuration
Non-NEMA
Current Rating
20 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
3
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Cover Type
No Cover
IP Rating
IP20
NEMA Enclosure Rating
12, 4X
Standards
CSA C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Impact Resistant, Moisture Resistant
Flange Type
Flanged
Material
Stainless Steel
Mounting Type
Flush Mount
Special Features
With Cover
Wiring Style
Standard
Grade
General Use
Housing Material
Nylon
Includes Mounting Hardware
Yes
Maximum Operating Temperature
167 Degrees F
Minimum Operating Temperature
-40 Degrees F
Market
Industrial
Includes
Mounting Screws
For Location
Indoor
For Environment
Dry
NEMA Plug Configuration
Non-NEMA
Features
Accepts Slotted, Phillips, and Robertson Head Drivers
Number of Blades
3
Blade Material
Brass
Flange Material
Natural White Nylon
Lock Type
Twist-lock
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Application
Extra Heavy Duty Industrial
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #10 AWG solid or stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Dielectric Strength
Withstands 2,000V minimum
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Material - Mounting Hardware
Screw Mounting
OEM Brand Name
Hubbell Wiring Device-Kellems
Insulation
Insulated Body
Amperage Rating
20 A
NEMA Configuration
Non-NEMA
NEMA Rating
12, 4X
Amps
20

Description

The HUBBELL 20A Flanged Twist-Lock Inlet is a flush-mount, locking inlet with flanged, flush-mount design suitable for demanding environments. It features a twist-lock mechanism with 3 poles and 3 wires, rated for 125/250V AC and up to 20 amps. The inlet is constructed from thermoplastic materials and includes backwired terminations for straightforward installation.


Key Features of the HUBBELL - 20A Flanged Twist-Lock Inlet:

  • Amperage/Voltage: Rated for 20 A at 125/250V AC single phase

  • Construction: Nylon housing with natural white nylon flange

  • Mounting: Flush mount design; mounting screws included

  • Terminals: Backwired screw terminals accept #16 AWG to #10 AWG copper wire; accepts slotted, Phillips, and Robertson drivers

  • Configuration: Non-NEMA twist-lock with three blades (3P), three wires (3W)

  • Standards: Certified to CSA C22.2 No.42, Federal Specification W-C-596, UL Listed to UL498

  • Operating Temperature Range: -40°C to +75°C (without impact)

  • Dielectric Strength & Insulation: Withstands minimum of 2,000V; insulated body construction

  • NEMA Enclosure Rating/IP Rating: NEMA Type 12 & 4X when properly installed; IP20 suitability for indoor dry locations unless protected by additional means
