Locking Receptacle, L15-30R, 20 A, 250V AC, Three Phase, 3 Pole, Flush Mount, Black
Mfr # FML1530R
Zoro # G210113184
Key Features
Specifications
Product Information
- MFR #
- FML1530R
- Zoro #
- G210113184
- UPC #
- 819145023238
- Country of Origin
- Taiwan, Province of China
Details
- Item
- Locking Receptacle
- NEMA Receptacle Configuration
- L15-30R
- Current Rating
- 20 A
- Voltage Rating
- 250V AC
- Phase
- Three
- Number of Poles
- 3
- Number of Wires
- 4
- Grounding
- Grounded
- Housing Color
- Black
- Mount Type
- Flush
- Cover Type
- No Cover
- Flange Type
- Non-Flanged
- Standards
- UL, cUL Listed
- Resistance Properties
- Chemical Resistant, Impact Resistant
- Material
- Nylon
- Wattage
- 12990W
- Number of Female Connectors
- 1
- Application
- Flush Mount Locking Receptacle
Description

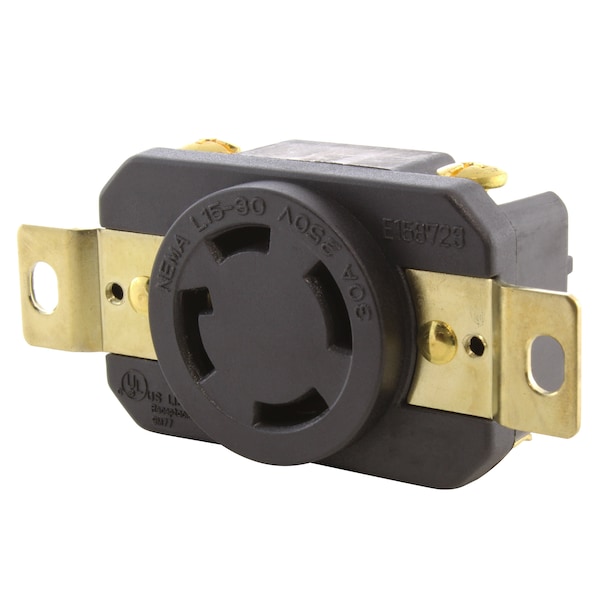

This AC WORKS brand female receptacle (model FML1530R) is a NEMA L15‐30R 30‐amp, 250‐volt, 3‐phase flush‐mount locking outlet designed for repairing or replacing industrial and commercial power receptacles. The device features a 3‐pole, 4‐wire grounding system and provides a secure locking connection to prevent accidental unplugging during operation. Built with chemical‐resistant and impact‐resistant PBT V‐0 thermoplastic housing, the receptacle is engineered for demanding environments including factories, warehouses, and commercial facilities. The design supports a maximum operating power of 12,990 watts and offers a quick installation process for electricians, maintenance teams, and DIY users. The FML1530R is certified under cULus E237606 and includes a 1‐year limited warranty.
- NEMA L15‐30R 30A 250V 3‐phase locking receptacle
- Flush‐mount design for industrial and commercial installations
- 3‐pole, 4‐wire grounding configuration
- Chemical‐resistant, impact‐resistant PBT V‐0 thermoplastic housing
- Supports up to 12,990 watts
- Quick installation for replacement or repair
- Certified cULus E237606
- Includes 1‐year limited warranty
