  11. Flanged Locking Inlet, Non-NEMA, 50 A, 250/600V AC, Three Phase, 3 Pole, Flush Mount, Silver

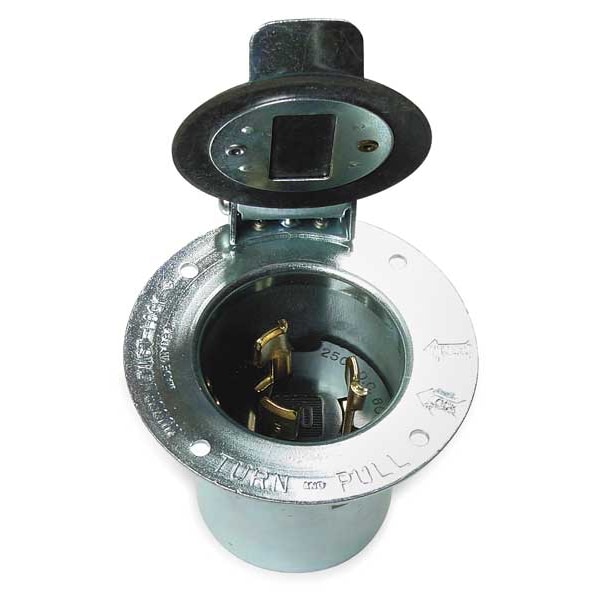

Hubbell Wiring Device-Kellems Flanged Locking Inlet, Non-NEMA, 50 A, 250/600V AC, Three Phase, 3 Pole, Flush Mount, Silver HBL3768 - main

Flanged Locking Inlet, Non-NEMA, 50 A, 250/600V AC, Three Phase, 3 Pole, Flush Mount, Silver

  • Mfr # HBL3768

  • Zoro # G1168352

product price: $210.60
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
Non-NEMA
Current Rating
50 A
Voltage Rating
250/600V AC
Phase
Three
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL3768
Zoro #
G1168352
UPC #
783585236452
Country of Origin
United States

Dimensions

Flange Diameter
3.5 in
Maximum Wire Size
4 AWG
Overall Depth
2.56 in
Minimum Wire Size
8 AWG
Face Diameter
2.56 in
Wire Size
#10 AWG - #6 AWG solid or stranded copper wire only

Details

Item
Flanged Locking Inlet
NEMA Receptacle Configuration
Non-NEMA
Current Rating
50 A
Voltage Rating
250/600V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Grounded
Housing Color
Silver
Mount Type
Flush
Cover Type
Flip-Up Cover
IP Rating
IP20
NEMA Enclosure Rating
12, 4X
Standards
CSA C22.2 No. 42, UL 498
Resistance Properties
Heat Resistant, Moisture Resistant
Flange Type
Flanged
Mounting Type
Flush Mount
Grade
General Use
Material
Zinc-Plated Steel
Special Features
With Stainless Steel Plate
Wiring Style
Standard
Blade Material
Brass
Maximum Operating Temperature
167 Degrees F
Includes
Mounting Screws
Includes Mounting Hardware
Yes
Housing Material Finish
Zinc Plated
NEMA Plug Configuration
Non-NEMA
Market
Industrial
Number of Blades
4
For Location
Indoor
Flange Material
Steel
Minimum Operating Temperature
-40 Degrees F
For Environment
Dry
Housing Material
Steel
Flammability
UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
Lock Type
Twist-lock
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
NEMA Rating
12, 4X
Amps
50
NEMA Configuration
Non-NEMA

Description

Flanged Locking Inlet, Current Rating 50 A, Flange Material Steel, Housing Color Silver, IP Rating IP20, Mount Type Flush, NEMA Enclosure Rating 12, 4X, NEMA Plug Configuration Non-NEMA, Number of Blades 4, Number of Poles 3, Phase Three, Resistance Properties Moisture Resistant, Heat Resistant, Voltage Rating 250V DC/600V AC, Wiring Style Standard, Face Diameter 2.56 in, Flange Diameter 3.5 in, Flange Type Flanged, Grounding Grounded, Housing Material Steel, Includes Mounting Hardware Yes
