Shop HUBBELL WIRING DEVICE-KELLEMS

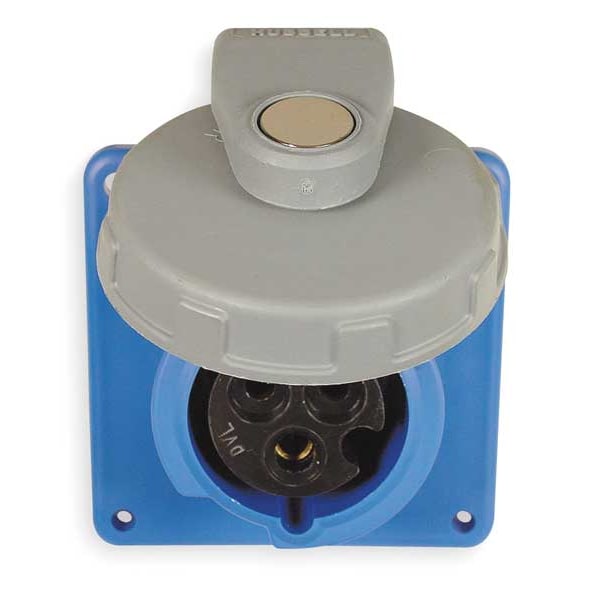

Watertight Pin & Sleeve Receptacle, 20 A, 250V AC, Three Phase, 2 Pole, IEC Grounding, Blue, NEMA 4X

  • Mfr # HBL320R6W

  • Zoro # G1712444

product price:  $163.35
/ea
Free Shipping & Returns

Key Features

Phase
Three
Number of Poles
2
Number of Wires
3
IP Rating
IP67
NEMA Enclosure Rating
4X
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL320R6W
Zoro #
G1712444
UPC #
783585403434
Country of Origin
United States

Dimensions

Minimum Wire Size
12 AWG
Face Diameter
2.85 in
Maximum Wire Size
8 AWG
Cord Size
14 to 10 AWG

Details

Item
Watertight Pin & Sleeve Receptacle
Current Rating
20 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
2
Number of Wires
3
IP Rating
IP67
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
Spring-Loaded Cap
Standards
CSA Certified C22.2 No. 182.1, IEC 60309-2, UL E146032, UL IEC 60309-1
Resistance Properties
Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight
Features
Color Coded
Switch Rated
No
Body Material
Zytel 101 Nylon
Grounding Style
IEC
Body Material - Pin and Sleeve
Zytel 101 Nylon
Power Indicating Light
No
Minimum Operating Temperature
-40 Degrees C
Shrouded
Yes
Flange Type
Flanged
Housing Material
Thermoplastic
Connection Orientation
Straight
Maximum Operating Temperature
75 Degrees C
Number of Gangs
1
Horsepower Rating
2 hp
Housing Material Grade
Zytel 101
Reverse Service
No
Market
Industrial
Dielectric Strength
3000V AC
Product Type
Watertight IEC Device
Gasket Material
Neoprene
Service
Standard
Weight
0.9 lb
Flange Material
Zytel 101 Nylon
Flammability
UL 94 HB or Better
Temp. Rise
30°C
Screw Material
300 Stainless Steel
Retainer Material
High-Impact Thermoset
Operating Temp.
-40 to 75°C
UL 94 Flammability Rating
HB
Grounding
Grounded

Description

The HUBBELL IEC Pin and Sleeve Receptacle is a IP67 rated electrical device suitable for industrial applications, rated for 20A and 250V AC. It features a straight connection orientation with screw terminal wire connections, suitable for environments where moisture and durability requirements are specified. The receptacle includes a spring-loaded cap; IP67 rated, NEMA 4X enclosure classification.


Key Features of the HUBBELL IEC Pin and Sleeve Receptacle:

  • Current/Voltage Rating: Rated for 20A, 250V AC

  • Body Material: Zytel 101 nylon, high-impact thermoset retainer

  • Ingress Protection: IP67; NEMA Enclosure Rating: 4X

  • Cord Size Compatibility: Accepts wire sizes from 14 to 10 AWG (minimum wire size: 12 AWG; maximum wire size: 8 AWG)

  • Operating Temperature Range: -40°C to +75°C

  • Number of Poles/Wires/Phase: Two poles, three wires, three-phase configuration

  • Grounding Style: IEC grounding with shrouded contacts

  • Resistance Properties: Corrosion resistance, impact resistance, moisture resistance

  • Screw Material: Made from stainless steel (300 series)

  • Standards Compliance: CSA Certified C22.2 No.182.1; IEC 60309-2; UL E146032; UL IEC60309-1
