  11. Flanged Locking Receptacle, L17-30R, 30 A, 600V AC, Three Phase, 3 Pole, Flush Mount, White

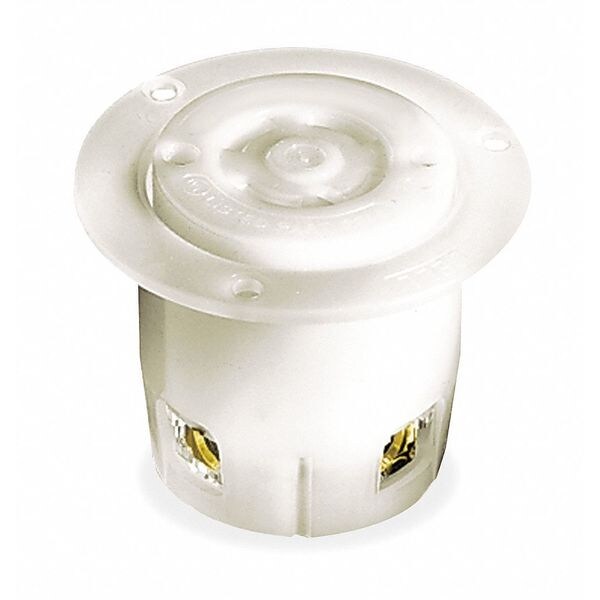

Hubbell Wiring Device-Kellems Flanged Locking Receptacle, L17-30R, 30 A, 600V AC, Three Phase, 3 Pole, Flush Mount, White HBL2746 - main

Flanged Locking Receptacle, L17-30R, 30 A, 600V AC, Three Phase, 3 Pole, Flush Mount, White

  • Mfr # HBL2746

  • Zoro # G3019737

product price: $74.39
/ea

Key Features

NEMA Receptacle Configuration
L17-30R
Current Rating
30 A
Voltage Rating
600V AC
Phase
Three
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2746
Zoro #
G3019737
UPC #
783585039428
Country of Origin
United States

Dimensions

Minimum Wire Size
16 AWG
Maximum Wire Size
8 AWG
Wire Size
#16 AWG - #8 AWG solid or stranded copper wire only.
Width
3.06 in
Height
2.27 in
Dimensions
3.06 in x 3.06 in x 2.27 in
Length
3.06 in

Details

Item
Flanged Locking Receptacle
NEMA Receptacle Configuration
L17-30R
Current Rating
30 A
Voltage Rating
600V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Cover Type
No Cover
IP Rating
IP20
NEMA Enclosure Rating
12, 4X
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Impact Resistant, Moisture Resistant
Flange Type
Flanged
Material
Nylon
Wiring Style
Standard
Mounting Type
Flush Mount
Grade
Industrial
Special Features
With Cover
Market
Industrial
For Environment
Dry
Horsepower Rating
10 hp
Features
Accepts Slotted, Phillips, and Robertson Head Drivers
For Location
Indoor
Number of Gangs
1
Polarized
Yes
Housing Material
Nylon
Contact Material
Brass
Maximum Operating Temperature
167 Degrees F
Includes
Mounting Screws
AFCI
No
Includes Mounting Hardware
Yes
Minimum Operating Temperature
-40 Degrees F
Flange Shape
Round
Connection Orientation
Straight
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Flange Material
Natural White Nylon
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Spring Material
Brass
Lock Type
Twist-lock
Material - Mounting Hardware
Screw Mounting
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
OEM Brand Name
Hubbell Wiring Device-Kellems
Amperage Rating
30 A
Application
Heavy Duty Industrial
Dielectric Strength
Withstands 2,000V minimum
Amps
30

Description

The HUBBELL 30A Flanged Twist-Lock Receptacle is a locking receptacle rated for use in indoor dry locations. This three-pole, four-wire device supports up to 600V AC and features a twist-lock mechanism.


Key Features of the HUBBELL 30A Flanged Twist-Lock Receptacle:

  • Amperage/Voltage Rating: Rated for 30 A, 600V AC; suitable for demanding industrial applications.

  • NEMA Configuration: L17-30R with three poles and four wires; polarized design.

  • Material Construction: Impact-resistant nylon housing and flange; brass contacts and springs provide durability.

  • Mounting Type: Flush mount with included mounting screws; round flanged shape allows straightforward panel integration.

  • Wire Accommodation: Accepts #16 AWG – #8 AWG solid or stranded copper wire via screw terminals (backwired).

  • Driver Compatibility: Terminal screws accept slotted, Phillips, or Robertson drivers for versatile installation options.

  • Covers & Hardware: Includes cover and mounting hardware as standard components.

  • Temperature Range & Ratings: Operates from -40°C to +75°C continuous temperature (without impact); maximum operating temperature of 167°F (75°C).

  • Certifications & Standards: Certified to CSA C22.2 No.42, UL 498 listed, Federal Specification W-C-596 compliant; NEMA Enclosure Type 1/IP20 rated for indoor use only.
