  11. Flanged Locking Receptacle, L22-30R, 30 A, 277/480V AC, Three Phase, 4 Pole, Flush Mount, White

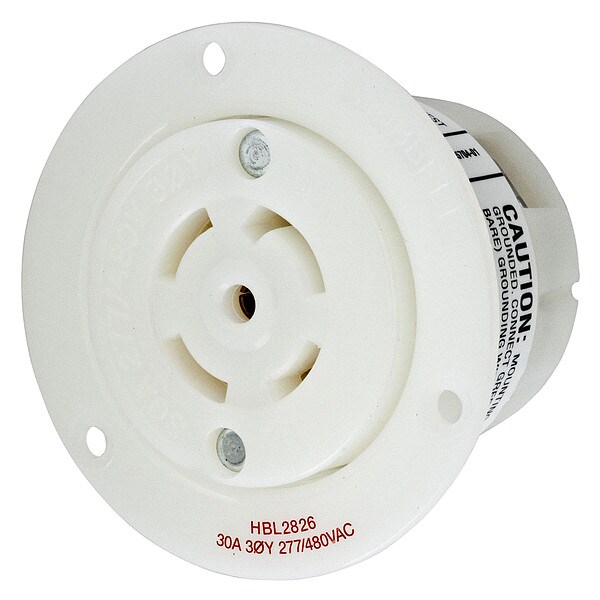

Hubbell Wiring Device-Kellems Flanged Locking Receptacle, L22-30R, 30 A, 277/480V AC, Three Phase, 4 Pole, Flush Mount, White HBL2826 - main

Flanged Locking Receptacle, L22-30R, 30 A, 277/480V AC, Three Phase, 4 Pole, Flush Mount, White

  • Mfr # HBL2826

  • Zoro # G2977791

product price: $133.99
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L22-30R
Current Rating
30 A
Voltage Rating
277/480V AC
Phase
Three
Number of Poles
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2826
Zoro #
G2977791
UPC #
783585039725
Country of Origin
United States

Dimensions

Minimum Wire Size
16 AWG
Maximum Wire Size
8 AWG
Wire Size
#10 AWG
Dimensions
3.06 in x 3.06 in x 2.27 in
Length
3.06 in
Width
3.06 in
Height
2.27 in

Details

Item
Flanged Locking Receptacle
NEMA Receptacle Configuration
L22-30R
Current Rating
30 A
Voltage Rating
277/480V AC
Phase
Three
Number of Poles
4
Number of Wires
5
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Cover Type
No Cover
IP Rating
IP20
NEMA Enclosure Rating
12, 4X
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Impact Resistant, Moisture Resistant
Flange Type
Flanged
Grade
Industrial
Special Features
With Cover
Wiring Style
Standard
Mounting Type
Flush Mount
Material
Stainless Steel
Features
Accepts Slotted, Phillips, and Robertson Head Drivers
For Environment
Dry
Includes
Mounting Screws
For Location
Indoor
Flange Shape
Round
Housing Material
Nylon
Minimum Operating Temperature
-40 Degrees F
Polarized
Yes
Maximum Operating Temperature
167 Degrees F
Horsepower Rating
10 hp
Market
Industrial
Connection Orientation
Straight
Includes Mounting Hardware
Yes
AFCI
No
Number of Gangs
1
Contact Material
Brass
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Lock Type
Twist-lock
Flange Material
Natural White Nylon
Spring Material
Brass
Flammability
V2 or better per UL94/CSA 22.2 No.0.17
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Material - Mounting Hardware
Screw Mounting
Application
Heavy Duty Industrial
Dielectric Strength
Withstands 2,000V minimum
Amperage Rating
30 A
Amps
30

Description

• Impact resistant thermoplastic construction
• Backwired terminations for ease of installation
• #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
• Mounting screws included
