  6. Locking Receptacle, 20 A, 250V AC, Single Phase, 2 Pole, Spring Clamp Terminals, White

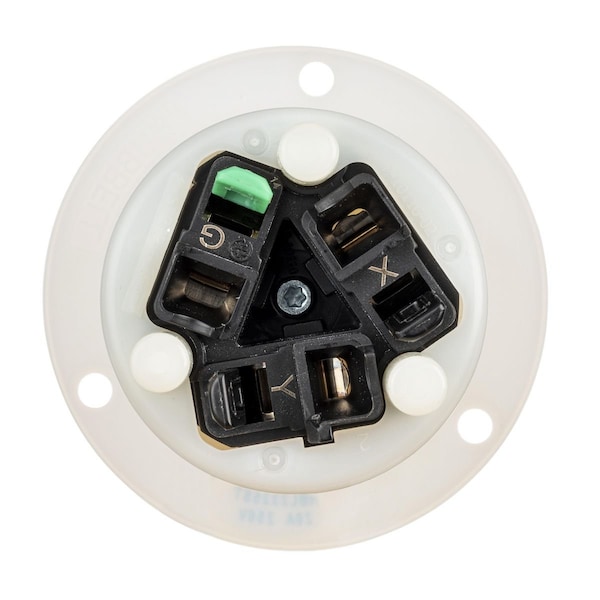

Hubbell Wiring Device-Kellems Locking Receptacle, 20 A, 250V AC, Single Phase, 2 Pole, Spring Clamp Terminals, White HBL2325ST - main

Locking Receptacle, 20 A, 250V AC, Single Phase, 2 Pole, Spring Clamp Terminals, White

  • Mfr # HBL2325ST

  • Zoro # G606171316

product price:  $30.71
/ea

Key Features

NEMA Receptacle Configuration
L6-20P
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL2325ST
Zoro #
G606171316
UPC #
783585719047
Country of Origin
China

Dimensions

Maximum Wire Size
8 AWG
Minimum Wire Size
14 AWG
Face Plate Width
0.07 in
Flange Diameter
2.5 in
Face Diameter
2.04 in
Overall Depth
2.55 in

Details

Item
Locking Plug
NEMA Receptacle Configuration
L6-20P
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Spring Clamp Terminals
Grounding
Grounded
Housing Color
White
Cover Type
No Cover
Flange Type
Flanged
Standards
CSA C22.2 No. 42, Federal Specification W-C-596, UL 498
Grade
Federal Specification
IP Rating
IP20
Horsepower Rating
2 hp
Market
Industrial
For Location
Indoor
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
167 Degrees F
NEMA Plug Configuration
L6-20P
Housing Material Finish
Natural
Includes
14 AWG - 8 AWG Copper Wire
Number of Blades
3
Housing Material
Nylon
Shrouded
No
NEMA Configuration
L6-20

Description

• Faster termination time
• No need for torque wrench
• Strong steel spring eliminates strand relaxation
• Funnel shaped wire entry for ease of termination.
• Backwired termination for ease of installation
