Shop HUBBELL WIRING DEVICE-KELLEMS

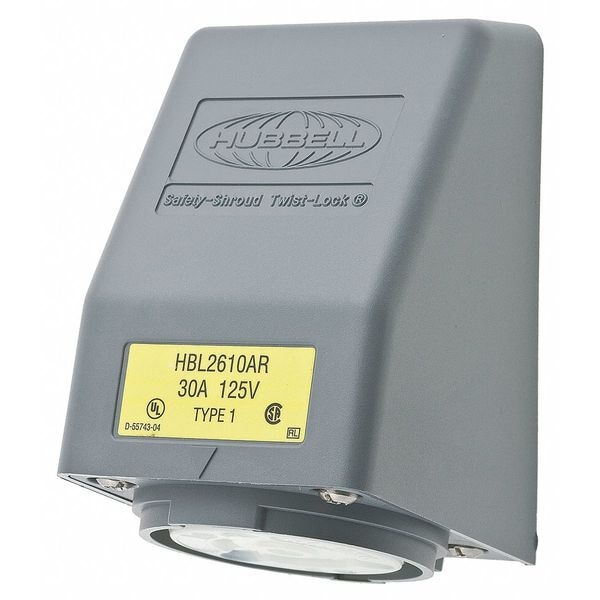

Flanged Locking Receptacle, L5-30R, 30 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Gray

  • Mfr # HBL2610AR

  • Zoro # G0352676

product price:  $53.15
/ea

Key Features

NEMA Receptacle Configuration
L5-30R
Current Rating
30 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL2610AR
Zoro #
G0352676
UPC #
783585234243
Country of Origin
United States

Dimensions

Minimum Wire Size
16 AWG
Maximum Wire Size
8 AWG
Wire Size
#16 AWG - #8 AWG solid or stranded copper wire only.

Details

Item
Flanged Locking Receptacle
NEMA Receptacle Configuration
L5-30R
Current Rating
30 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
Cover Type
No Cover
Flange Type
Flanged
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Corrosion Resistant, Impact Resistant
Special Features
With Cover
Wiring Style
Standard
IP Rating
IP20
Material
Nylon
Mounting Type
Flush Mount
Grade
Industrial
For Environment
Dry
Horsepower Rating
2 hp
Number of Gangs
1
AFCI
No
NEMA Enclosure Rating
12, 4X
Polarized
Yes
Flange Shape
Rectangular
Housing Material
Valox
Market
Industrial
Shrouded
Yes
Minimum Operating Temperature
-40 Degrees F
Contact Material
Brass
Maximum Operating Temperature
167 Degrees F
For Location
Indoor
Spring Material
.031" Brass
Flange Material
Gray Valox 357U
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Lock Type
Twist-lock
Amps
30
UL 94 Flammability Rating
V-2

Description

• Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
• Catalog number and color coded voltage rating are visible even when in use
• Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy-duty industrial environments
