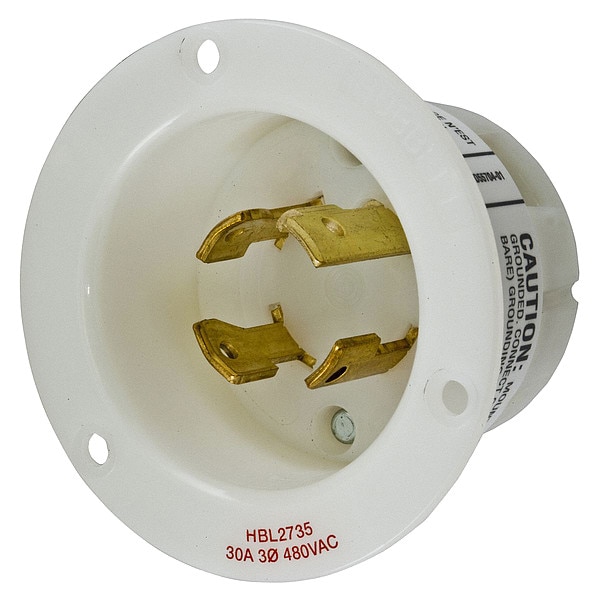

Hubbell Wiring Device-Kellems Flanged Locking Inlet, 30 A, 480V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals, White HBL2735 - main

Flanged Locking Inlet, 30 A, 480V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals, White

  • Mfr # HBL2735

  • Zoro # G0775521

product price:  $65.45
/ea

Key Features

NEMA Receptacle Configuration
L16-30P
Current Rating
30 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL2735
Zoro #
G0775521
UPC #
783585039350
Country of Origin
United States

Dimensions

Minimum Wire Size
16 AWG
Overall Depth
2.27 in
Flange Diameter
3.06 in
Face Plate Width
0.09 in
Maximum Wire Size
8 AWG
Face Diameter
2.23 in
Wire Size
#16 AWG - #8 AWG solid or stranded copper wire only.
Dimensions
3.06 in x 3.06 in x 2.27 in
Length
3.06 in
Width
3.06 in
Height
2.27 in

Details

Item
Locking Plug
NEMA Receptacle Configuration
L16-30P
Current Rating
30 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Cover Type
No Cover
Flange Type
Flanged
Standards
CSA C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Impact Resistant, Moisture Resistant
Grade
General Use
Boot Code
E
Wiring Style
Standard
Special Features
With Cover
IP Rating
IP20
Material
Nylon
Mounting Type
Flush Mount
Market
Industrial
Shrouded
No
Blade Material
Brass
NEMA Plug Configuration
L16-30P
Includes
Mounting Screws
For Environment
Dry
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
167 Degrees F
NEMA Enclosure Rating
12, 4X
Includes Mounting Hardware
Yes
For Location
Indoor
Features
Accepts Slotted, Phillips, and Robertson Head Drivers
Connection Orientation
Straight
Housing Material
Nylon
Flange Material
Nylon
Number of Blades
4
Horsepower Rating
10 hp
Lock Type
Twist-lock
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Flammability
HB or better per UL94/CSA 22.2 No.0.17
Amperage Rating
30 A
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C. Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Material - Mounting Hardware
Screw Mounting
OEM Brand Name
Hubbell Wiring Device-Kellems
Insulation
Insulated Body
Application
Extra Heavy Duty Industrial
Dielectric Strength
Withstands 2,000V minimum
NEMA Configuration
L16-30
NEMA Rating
12, 4X
Amps
30

Description

• Impact resistant thermoplastic construction
• Backwired terminations for ease of installation
• #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
• Mounting screws included
