Shop HUBBELL WIRING DEVICE-KELLEMS

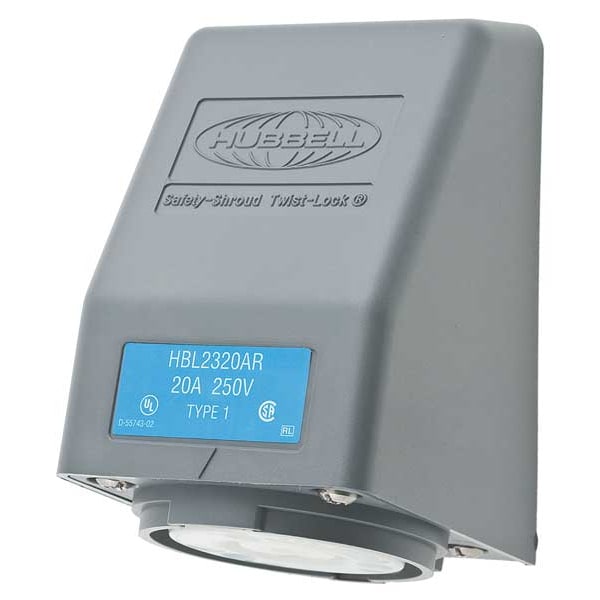

Flanged Locking Receptacle, L6-20R, 20 A, 250V AC, Single Phase, 2 Pole, Flush Mount, Gray

  • Mfr # HBL2320AR

  • Zoro # G1386804

product price:
$
37.79
/ea

Key Features

NEMA Receptacle Configuration
L6-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL2320AR
Zoro #
G1386804
UPC #
783585234083
Country of Origin
United States

Dimensions

Maximum Wire Size
8 AWG
Minimum Wire Size
16 AWG
Wire Size
#14 to #8 AWG Copper Only

Details

Item
Flanged Locking Receptacle
NEMA Receptacle Configuration
L6-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
Cover Type
No Cover
Flange Type
Flanged
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Corrosion Resistant, Impact Resistant
Wiring Style
Standard
Mounting Type
Flush Mount
Material
Stainless Steel/Phenolic
Special Features
Corrosion resistant
IP Rating
IP20
Grade
Industrial
NEMA Enclosure Rating
12, 4, 4X
Number of Gangs
1
Maximum Operating Temperature
167 Degrees F
For Environment
Dry
Market
Industrial
Horsepower Rating
2 hp
Flange Shape
Rectangular
For Location
Indoor
Contact Material
Brass
Minimum Operating Temperature
-40 Degrees F
Polarized
Yes
Shrouded
Yes
AFCI
No
Housing Material
Valox
Lock Type
Twist-lock
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Flammability
V2 or better per UL94/CSA 22.2 No.0.17
Spring Material
.031" Brass
Flange Material
Gray Valox 357U
Amps
20
UL 94 Flammability Rating
V-2

Description

• Accepts Hubbell shrouded and standard NEMA locking plugs
• Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
• Catalog number and color coded voltage rating are visible even when in use
• Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy-duty industrial environments
