  11. Flanged Straight Blade Inlet, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

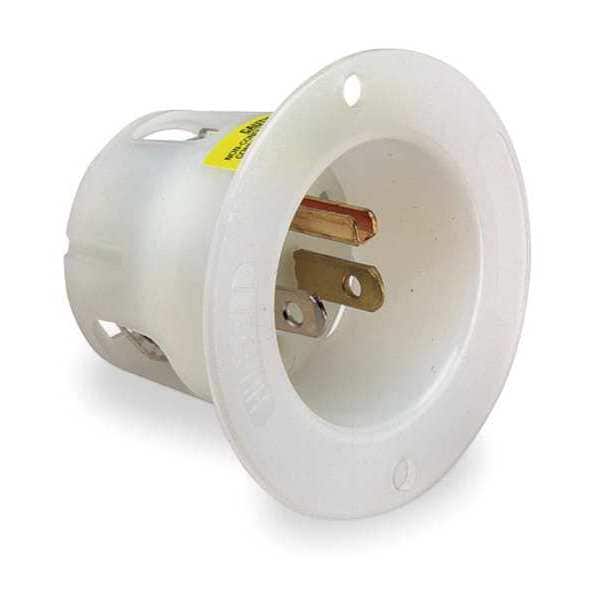

Hubbell Wiring Device-Kellems Flanged Straight Blade Inlet, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5278C - main

Flanged Straight Blade Inlet, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5278C

  • Zoro # G2300803

product price: $22.41
/ea

Key Features

Receptacle Type
Single
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5278C
Zoro #
G2300803
UPC #
783585173504
Country of Origin
United States

Dimensions

Width
1.69 in
Height
1.71 in
Length
1.71 in
Display Size
Standard Sized Product
Wire Size
#18 AWG to #12 AWG
Dimensions
1.71 in x 1.69 in x 1.71 in

Details

Item
Flanged Straight Blade Inlet
Receptacle Type
Single
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Standards
CSA Certified C22.2 No. 42, NEMA WD-6, UL E2186, UL Listed
Resistance Properties
Impact Resistant
Flange Type
Flanged
Weather Resistant - Plugs and Receptacles
No
Mounting Type
Panel
Outlet Type
Inlet
NEMA Receptacle Configuration - Plugs and Receptacles
5-15P
Outlet Type - Plugs and Receptacles
Inlet
Number of Gangs
1
Corrosion Resistant
No
Voltage
125VAC
Weather Resistant
No
Surge Suppression
No
Wiring Method - Plugs and Receptacles
Back
Sub-Category
Inlets
Tamper Resistant
No
Application Environment
Industrial
Material
Nylon/Polycarbonate
Mounting Type - Plugs and Receptacles
Panel
Power Indicator
No
Wiring Method
Back
HP
1/2 hp
Type
Miniature
Maximum Operating Temperature
75 Degrees C
Housing Material
Nylon
Compatible with Series
Insulgrip
Grade
Specification
Minimum Operating Temperature
-40 Degrees F
Number of Blades
3
Connection Orientation
Straight
Includes
Mounting Screws
Horsepower Rating
1/2 hp
Surge Protection
No
Market
Industrial
Flange Shape
Round
Blade Material
Brass
NEMA Plug Configuration
5-15P
Cover Type
No Cover
Terminal Screw Material
#8-32 Brass, Multiple Drive
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Poles and Wires
2 Pole, 3-Wire Grounding
Inlet Type
Standard Non-Metallic
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Dielectric Voltage
Withstands 2,000V minimum
Top Material
Nylon
Receptacle Grade
Heavy Duty Spec Grade
Standard
NEMA
Mounting Screw Material
Brass-Nickel Plated
Rating
15A, 125V
Certification
UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42
Power Contacts Material
.040" (1.0) Brass
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Horsepower
0.5
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Terminal Accommodation
#18-#10 AWG copper stranded or solid conductor only
Flammability
UL 94 V-2
Current Interrupting
Certified for current interrupting at full rated current
Base Material
Polycarbonate
Device Color
White
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #18-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Series
Insulgrip
Cord Range
0.230"-0.360" (5.8-18.3)
Wattage
1875 W
Application
Extra Heavy Duty Industrial
Industry Standard(s)
Certified to CSA, C22.2, No. 42 NEMA® WD-6 Compliant UL Listed, File E2186
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
OEM Brand Name
Hubbell Wiring Device-Kellems
Style
Standard Non-Metallic
Dielectric Strength
Withstands 2,000V minimum
Horsepower - Maximum
0.5
Material - Mounting Hardware
Screw Mounting
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Insulation
Insulated Body
Conductor Range
#18 AWG to #10 AWG
Nema Rating
5-15P
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact

Description

• Impact resistant thermoplastic construction
• Backwired terminations for ease of installation
• #8-32 Multiple drive terminal screws
• Mounting screws included
