  11. GFCI Rceptcle, Commer., Wht, 20A, 1 HP

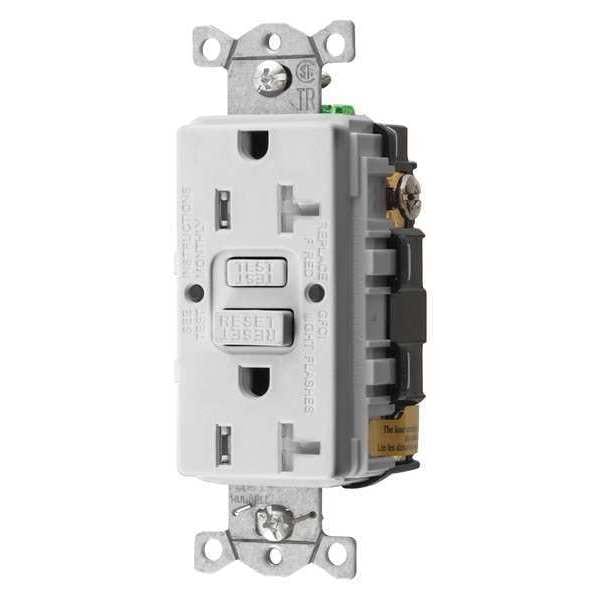

Hubbell Wiring Device-Kellems GFCI Rceptcle, Commer., Wht, 20A, 1 HP GFRTR20W - main

GFCI Rceptcle, Commer., Wht, 20A, 1 HP

  • Mfr # GFRTR20W

  • Zoro # G4885021

product price: $29.36
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFRTR20W
Zoro #
G4885021
UPC #
883778124280
Country of Origin
China

Dimensions

Face Plate Width
1.8 in
Face Plate Height
2.8 in
Mount Hole Center-to-Center Height
3.3 in

Details

Item
GFCI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
Grounding
Grounded
Housing Color
White
Housing Material
Nylon
Mounting Type
Flush
NEMA Enclosure Rating
1
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
NEC
Reset Type
Automatic
Amps - Plugs and Receptacles
20 A
Weather Resistant - Plugs and Receptacles
No
Voltage
125VAC
Self-Testing
Yes
Color - Plugs and Receptacles
White
Application Environment
Commercial
Wiring Method - Plugs and Receptacles
Back and Side
Mounting Type - Plugs and Receptacles
Flush
Outlet Type - Plugs and Receptacles
Decorator Duplex
Outlet Type
Decorator
Tamper Resistant
Yes
Power Indicator
Yes
Voltage - Plugs and Receptacles
125V AC
Color
White
Special Features
Ground Fault Indicator
Weather Resistant
No
Surge Suppression
No
Amps - Plugs and Receptacles
20
Wiring Method
Back, Side
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Amps
20A
NEMA Configuration
5-20
Item - Plugs and Receptacles
Receptacle
HP
1 hp
Self Testing
Yes
Receptacle Type
Duplex
Number of Gangs
1
Contact Material
Brass
Horsepower Rating
1 hp
Mount Type
Flush
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Voltage Rating
125V AC
Market
Commercial
Features
Tamper Resistant
Includes
Mounting Hardware
Includes Mounting Hardware
Yes
Wire Connection Type
Screw Terminals
Surge Protection
No
Grade
General Use
Shrouded
No
AFCI
No
Type
Tamper-Resistant, Weather Resistant
Nema Rating
5-15R
Style
Assembled In USA
Voltage Rating Description
125 V
Industry Standard(s)
Meets All NEC® Requirements
Current / Amperage Rating
15 A
Series
Heavy Duty
Amperage Rating
20 A

Description

AUTOGUARD® Self Test Technology 1st introduced by Hubbell over 10 years ago...self test monitoring now required in 2015 UL 943 GFCI Safety Standard... Hubbell AUTOGUARD® GFCI receptacles continually test and monitor for “people protection capability” automatically. This patented safety feature includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost. GFCI auto-monitoring is conducted continuously within every 30 seconds. Also, clear visual indicators are provided on the device face representing power status, trip condition, ground fault condition and end of life status. In addition, for added safety, power will be denied to the receptacle face if reverse wiring of line and load was to occur.
• Patented shutter design for tamper-resistant
• Compliant with NEC® 406.12 and NEC® 517-18(c)
• Patented AUTOGUARD® self test technology
• Triple wipe construction
• Alarm version provides audible notification of a trip condition
