  11. GFCI Rceptcle, Hspital, Blk, 20A, 1 HP

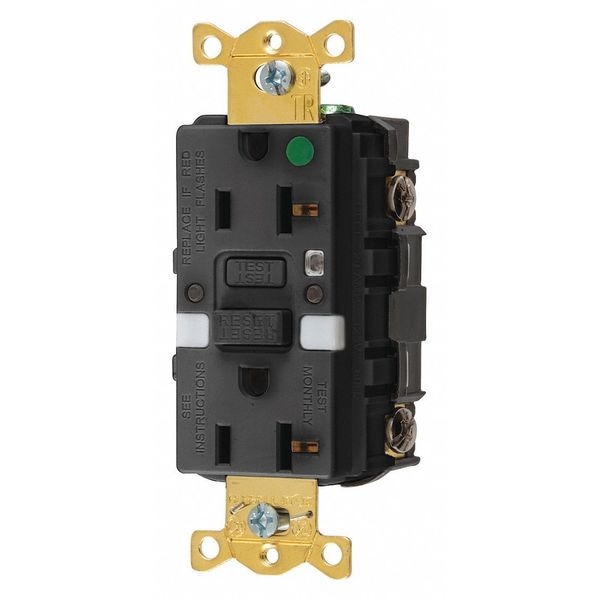

Hubbell Wiring Device-Kellems GFCI Rceptcle, Hspital, Blk, 20A, 1 HP GFTRST83BKNL - main

GFCI Rceptcle, Hspital, Blk, 20A, 1 HP

  • Mfr # GFTRST83BKNL

  • Zoro # G4843049

product price: $85.95
/ea
Free Shipping & Returns

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFTRST83BKNL
Zoro #
G4843049
UPC #
783585486154
Country of Origin
China

Dimensions

Face Plate Width
1.8 in
Face Plate Height
2.8 in
Mount Hole Center-to-Center Height
3.3 in

Details

Item
GFCI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Housing Color
Black
Housing Material
Nylon
Mounting Type
Flush
NEMA Enclosure Rating
1
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
NEC
Power Indicator
Yes
Color - Plugs and Receptacles
Black
HP
1 hp
Wiring Method
Back, Side
Mounting Type - Plugs and Receptacles
Flush
Amps - Plugs and Receptacles
20
Amps - Plugs and Receptacles
20 A
Amps
20A
Application Environment
Heavy Use Hospital Grade
NEMA Configuration
5-20
Tamper Resistant
Yes
Weather Resistant - Plugs and Receptacles
No
Voltage - Plugs and Receptacles
125V AC
Weather Resistant
No
Outlet Type
Decorator
Voltage
125VAC
Surge Suppression
No
Self-Testing
Yes
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Color
Black
Item - Plugs and Receptacles
Receptacle
Special Features
Nightlight
Reset Type
Automatic
Wiring Method - Plugs and Receptacles
Back and Side
Outlet Type - Plugs and Receptacles
Decorator Duplex
Voltage Rating
125V AC
Shrouded
No
Self Testing
Yes
Market
Commercial
Receptacle Type
Duplex
Features
Night Light
Contact Material
Brass
Wire Connection Type
Screw Terminals
Surge Protection
No
Number of Gangs
1
Flange Type
Non-Flanged
Includes Mounting Hardware
Yes
Includes
Mounting Hardware
Mount Type
Flush
AFCI
No
Horsepower Rating
1 hp
Resistance Properties
Tamper Resistant
Grade
Hospital Grade
Type
Tamper-Resistant
Style
Nightlight
Nema Rating
5-20R
Current / Amperage Rating
20 A
Industry Standard(s)
Meets All NEC® Requirements
Voltage Rating Description
125 V
Series
Hospital Grade

Description

The HUBBELL GFCI Receptacle is a hospital grade, 20A duplex outlet suitable for use in commercial environments. It features AUTOGUARD® self-test technology with periodic monitoring of ground fault protection capability that disconnects power when specified internal conditions are detected. The receptacle includes visual indicators for power status, trip condition, ground fault detection, and end-of-life status. The device is configured so that no power is supplied to the face if reverse wiring is detected.


Key Features of the HUBBELL GFCI Receptacle:

  • Current/Voltage Rating: Rated for 20A and 125V AC operation

  • Hospital Grade: Rated as hospital grade

  • NEMA Configuration: 5-20R decorator duplex outlet with tamper-resistant design

  • Self-Testing: Integrated self-testing function operates every 30 seconds

  • Tamper Resistant: Includes tamper-resistant features

  • Night Light Feature: Built-in nightlight feature enhances visibility in low-light conditions

  • Mounting Type: Flush mount with included mounting hardware; supports back or side wiring via screw terminals

  • Contact Material/Housing Material: Brass contacts; nylon housing provide durability in high-use settings

  • Status Indicators: Visual indicators display power, trip, ground fault, and end-of-life conditions on device face
