Shop HUBBELL WIRING DEVICE-KELLEMS

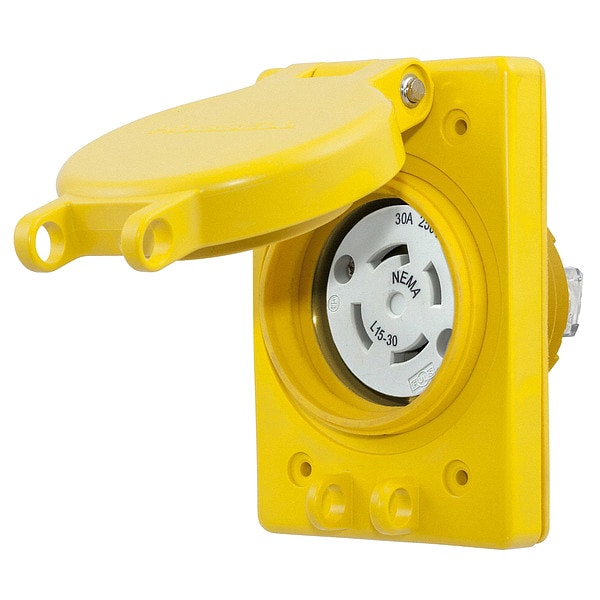

Watertight Flanged Locking Receptacle, L15-30R, 30 A, 250V AC, Three Phase, 3 Pole, Flush Mount

  • Mfr # HBL69W75

  • Zoro # G0069855

product price:
$
160.65
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L15-30R
Current Rating
30 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL69W75
Zoro #
G0069855
UPC #
783585433288
Country of Origin
United States

Dimensions

Maximum Wire Size
8 AWG
Minimum Wire Size
18 AWG
Cord Size
18 to 8 AWG
Height
2.92 in
Width
3.10 in
Length
4.56 in
Wire Size
#18 AWG to #8 AWG
Dimensions
4.56 in x 3.10 in x 2.92 in

Details

Item
Watertight Flanged Locking Receptacle
NEMA Receptacle Configuration
L15-30R
Current Rating
30 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Housing Color
Yellow
Mount Type
Flush
Cover Type
Flip-Up Cover
Flange Type
Flanged
Standards
ANSI, NEMA WD-1 and WD-6
Resistance Properties
Impact Resistant, Moisture Resistant, Watertight
Mounting Type
Flush Mount
Special Features
With Cover
IP Rating
IP69K
Material
Nylon
Grade
Industrial
Wiring Style
Standard
Contact Material
Nickel-Plated Brass
Flange Shape
Rectangular
Insulation Material
Thermoplastic Elastomer
Number of Gangs
1
Shrouded
No
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
-40 Degrees F
Housing Material
Thermoplastic Elastomer
Market
Industrial
NEMA Enclosure Rating
3R, 3RX, 4, 4X, 6, 6P
AFCI
No
Connection Orientation
Straight
Polarized
Yes
Amperage Rating
30 A
Performance
Electrical - Current Interrupting - Rated for current interruption per UL498 Electrical - Dielectric Voltage - 2500V AC Electrical - Max Working Voltage - As marked Electrical - Temperature Rise - 30°C max per UL498 at rated current Environmental - UV resistance - All exposed materials are UV stabilized Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous
NEMA Rating
3R, 3RX, 4, 4X, 6, 6P
Amps
30

Description

The HUBBELL 30A Watertight Locking Receptacle is a flanged, flush-mount electrical device intended for industrial applications requiring watertight and impact-resistant connections. This receptacle features a flip-up cover and is constructed with thermoplastic elastomer housing and nickel-plated brass contacts to provide durability in demanding environments. It supports three-phase power at 250V AC, accommodates wire sizes from #18 AWG to #8 AWG, and meets multiple NEMA enclosure ratings for protection against moisture, dust, and corrosion.


Key Features of the HUBBELL 30A Watertight Locking Receptacle:

  • Amperage/Voltage: Rated for 30 A at 250V AC with three poles and four wires (NEMA L15-30R configuration).

  • IP69K rated; provides ingress protection as specified by the rating

  • Material Construction: Thermoplastic elastomer housing with nylon components; nickel-plated brass contacts

  • Cord Accommodation: Accepts wire sizes from #18 AWG to #8 AWG via screw terminals.

  • NEMA Enclosure Ratings: Meets NEMA types 3R, 3RX, 4, 4X, 6, 6P, and 12 standards

  • Mounting Style: Flush mount design with rectangular flange; includes flip-up cover

  • Operating Temperature Range: -40°F to +140°F (-40°C to +60°C continuous operation).

  • Standards Compliance: Conforms to ANSI standards as well as NEMA WD-1 and WD-6 requirements.
