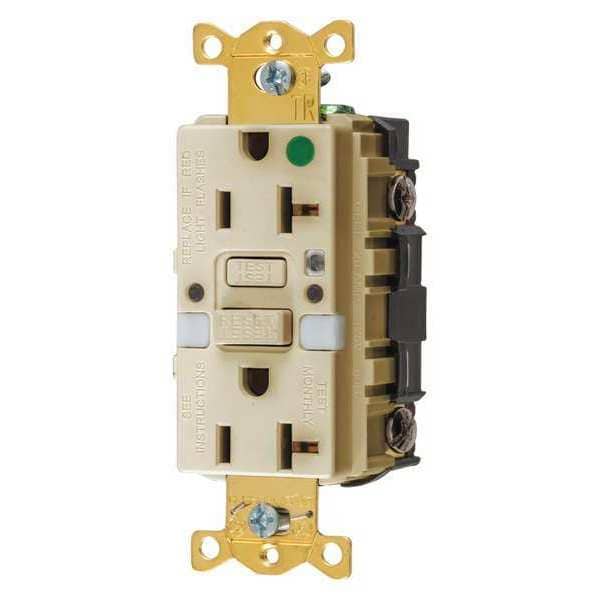

Hubbell Wiring Device-Kellems GFCI Rceptcle, Hspital, Ivry, 20A, 1 HP GFTRST83INL - main

GFCI Rceptcle, Hspital, Ivry, 20A, 1 HP

  • Mfr # GFTRST83INL

  • Zoro # G4884979

product price: $93.49
/ea
Free Shipping & Returns

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFTRST83INL
Zoro #
G4884979
UPC #
783585486178
Country of Origin
China

Dimensions

Face Plate Height
2.8 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.8 in

Details

Item
GFCI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Housing Color
Ivory
Housing Material
Nylon
Mounting Type
Flush
NEMA Enclosure Rating
1
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
NEC
Voltage - Plugs and Receptacles
125V AC
Voltage
125VAC
Color - Plugs and Receptacles
Ivory
Amps
20A
Self-Testing
Yes
Amps - Plugs and Receptacles
20
Outlet Type - Plugs and Receptacles
Decorator Duplex
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Application Environment
Heavy Use Hospital Grade
HP
1 hp
Weather Resistant - Plugs and Receptacles
No
Amps - Plugs and Receptacles
20 A
Mounting Type - Plugs and Receptacles
Flush
Tamper Resistant
Yes
Outlet Type
Decorator
Color
Ivory
Special Features
Nightlight
Wiring Method - Plugs and Receptacles
Back and Side
Power Indicator
Yes
NEMA Configuration
5-20
Wiring Method
Back, Side
Weather Resistant
No
Item - Plugs and Receptacles
Receptacle
Reset Type
Automatic
Surge Suppression
No
Wire Connection Type
Screw Terminals
Features
Night Light
Grade
Hospital Grade
Horsepower Rating
1 hp
Receptacle Type
Duplex
Includes Mounting Hardware
Yes
Self Testing
Yes
Surge Protection
No
Number of Gangs
1
Includes
Mounting Hardware
Mount Type
Flush
Shrouded
No
Voltage Rating
125V AC
Resistance Properties
Tamper Resistant
Contact Material
Brass
Flange Type
Non-Flanged
Market
Commercial
AFCI
No
Type
Tamper-Resistant
Voltage Rating Description
125 V
Industry Standard(s)
Meets All NEC® Requirements
Nema Rating
5-20R
Style
Nightlight
Series
Hospital Grade
Current / Amperage Rating
20 A

Description

AUTOGUARD® Self Test Technology 1st introduced by Hubbell over 10 years ago...self test monitoring now required in 2015 UL 943 GFCI Safety Standard... Hubbell AUTOGUARD® GFCI receptacles continually test and monitor for “people protection capability” automatically. This patented safety feature includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost. GFCI auto-monitoring is conducted continuously within every 30 seconds. Also, clear visual indicators are provided on the device face representing power status, trip condition, ground fault condition and end of life status. In addition, for added safety, power will be denied to the receptacle face if reverse wiring of line and load was to occur.
•
